Overview
|

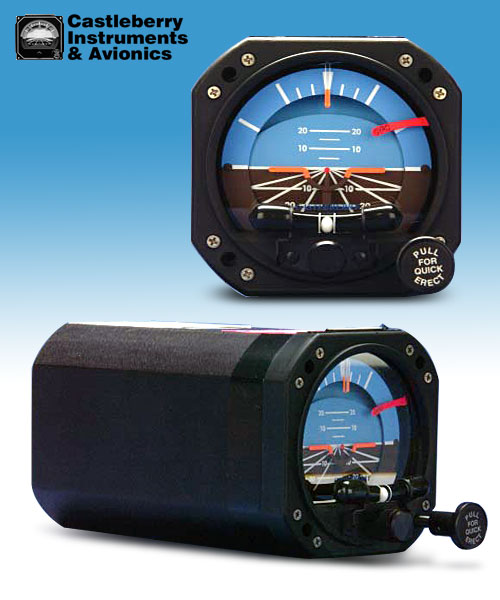

300-14 SERIES ELECTRIC BACK UP ATTITUDE HORIZON Castleberry Instruments & Avionics introduces a new FAA certified back-up attitude indicator. This instrument is an approved substitute for previously mandated rate of turn indicators in Part 23 aircraft operating in Part 91 and less than 12,500 pounds. This substitution is based upon the FAA Advisory Circular AC91-75 that promotes the installation of a backup attitude indicator. In the FAA words, “Substituting a second attitude indicator (with a power source independent from the primary attitude indicator) for the rate-of-turn indicator will provide an increased level of safety.” The high quality electric attitude indicator replaces the turn and bank and may be installed in the same panel location, freeing up crowded panel space. Installation of these units is straight-forward. It has an inclinometer for use in standard rate turns and a failure warning flag to indicate loss of gyro RPM. When used together with the Castleberry Emergency Power Unit, Model EPU 28-24RMT, this instrument provides the pilot with a welcome margin of insurance in case of aircraft electrical power failure. Castleberry gyros embody a heritage of quality and reliability brought by a core of professionals with an average of more than 20-years in the industry. New gyros carry a 15-month warranty. Castleberry manufactures flight instruments and electronics for the General Aviation and Corporate Aircraft industry. The company also produces FAA approved, TSO’d replacement products for older, obsolete instruments. FAA APPROVED FOR DIRECT REPLACEMENT OF STANDARD RATE OF TURN GYROS |
Features
- Inclinometer
- Power failure flag
- Pull to cage knob
- Backlit
- Standard 3 1/8 in. diameter
Specifications
- Model: 300-14EL
- Part Number: 504-0006-954 / -956
- Input: 14- or 28-VDC
- Panel Tilt: 0 to 11 Degree
- Lighting: Blue White
- Weight: 3.8 Lb.
- Bezel: Standard Round
Reviews
I want to know if Gyro model 900-23epj isolated transformer has been installed on its own or not.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We have updated the webpage and now on the accessories tab you can find the light tray options.
This instrument does not include the light tray for the back lighting. Please visit the accessories tab for a list of approved light trays.
The length of this attitude indicator is 6 inches.
10-02823 is for 14V aircraft with 0 degree panel tilt.
10-02829 is for 28V aircraft with 8 degree panel tilt.
No. This does not connect to an autopilot.
