RC Allen 22 Series Vacuum Horizon Gyro TSO
Overview
|
The RCA22 Series of vacuum artificial horizon are controlled by air driven precision gyros to present the pilot with pitch and roll information. The attractive color scheme of blue sky and brown ground presents a realistic spherical display of flight. Unless otherwise indicated all instruments have a dark blue/brown display, fixed pointer and are unlighted. This is the "standard" display.

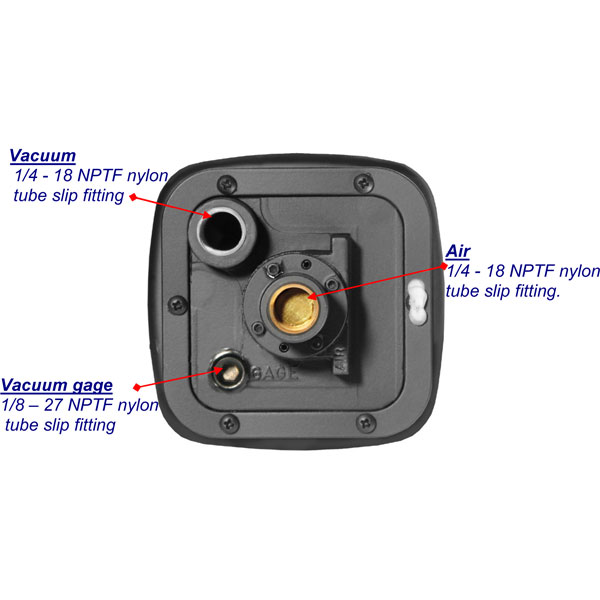

All RC Allen vacuum gyros run off of 4.5" Hg, erect time is 3 min. Instruments equipped with a warning flag will let you know when vacuum has dropped below 3.8" Hg. Flag retracts from view at 4.3" Hg. Instrument fits in a standard 3-1/8" panel cutout. 1/4"-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation. 1/8"-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation. Height: 3-3/8" Width: 3-3/8" Length: 6" Weight: 2.75 lbs. Meets or exceeds all requirements of FAA TSO C4c and Aeronautical Standard AS396B. Made in the USA |
Model Specifications
- 22-7: Standard display

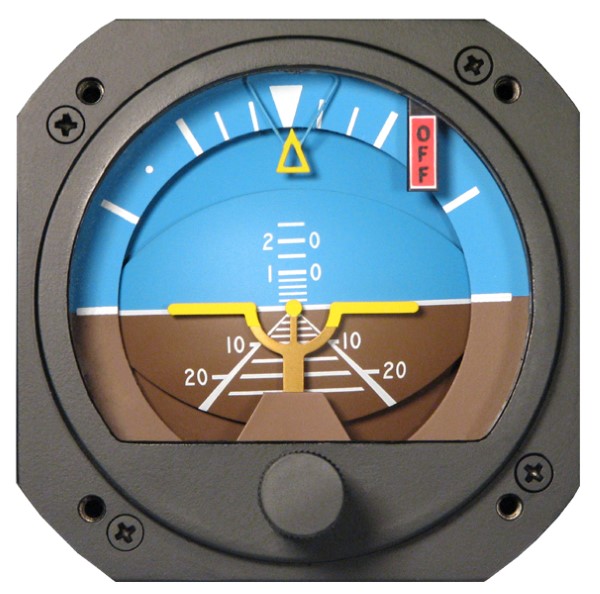

- 22-7F: Standard Display with a warning flag.

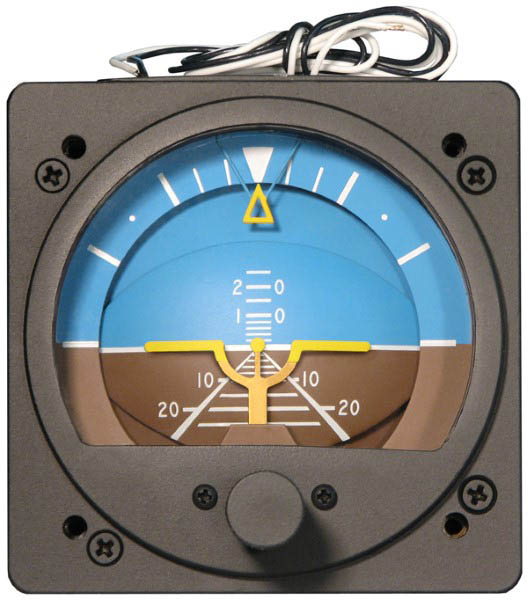

- 22-11: Standard display, lighted 14V or 28V
- 22-11F: Standard display, lighted, with a warning flag, 14V or 28V

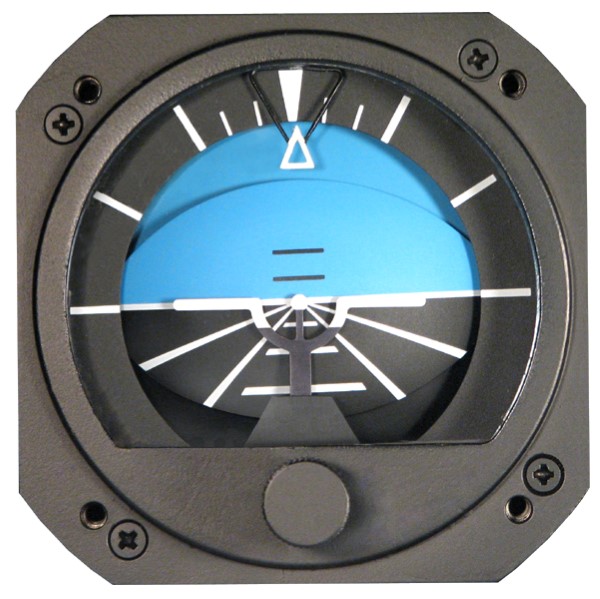

- 22-15: Display is blue over black(AKA Piper Display).
Documents
- RCA22 Manual (PDF)
Reviews
Verified Purchase
RC Allen 22-7 Vacuum Horizon Gyro 0 Degree Tilt TSO
Easy replacement for my old attitude indicator. Seems to be working very well. No surprises.
Verified Purchase
RC Allen 22-7 Vacuum Horizon Gyro 0 Degree Tilt TSO
Almost didnt get it but, the lady that helped me did her magic and found a Gyro Horizon instrument at the other warehouse. Great help.
Verified Purchase
RC Allen 22-7 Vacuum Horizon Gyro 0 Degree Tilt TSO
Great product
Verified Purchase
RC Allen 22-7 Vacuum Horizon Gyro 0 Degree Tilt TSO
Ordered online quick delivery. The Form 8130 was missing in the box, but I called and was emailed the form right away. Thanks Aircraft Spruce!
Good inexpensive Attitude Indicator. I didnt need to spend THOUSANDS on the electronic stuff. Works perfect!
Wish I lived on KFFC.
Worked great
Just installed the RCA22-7F (8 degree panel, non-internally lighted with blue over brown colors and Vac flag) in the co-pilot position of my 421B. Great looking instrument, shorter in length than the original so some plumbing re-work was required, but I love the increased space behind the panel. Time will tell if it holds up as well as my last one (a non-RC Allen instrument that went 18 years and about 2,500 flight hours). Nice looking instrument. Though I have dual vacuums and electronic annunciation of vacuum failure it is nice to have the instrument flag to give immediate failure warning.
This was a vast improvement over my original 3.75 AH it is lighter and more accurate, it doesnt drift, its easier to read, and the markings offer more precise flying. It has definitely made allowed me to fly much better under instruments. I feel much more confident with this new instrument than my original.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
22-15: Display is blue over black (AKA Piper Display). All other model numbers have standard blue over brown display.
These come with a 1 year manufacturer's warranty.
The RC Allen 22-7 gyro will come with the domestic 8130 paperwork included in the box.
Yes, this unit is FAA TSO approved for use in certified aircraft.
Yes, we do export to Europe.
Yes, the gyros listed on this page are new, outright.
