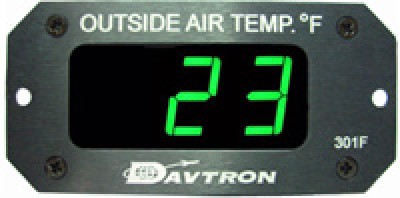

Davtron Digital Outside Air Temperature Model 301
| Description | PN | Price | Buy |
|---|---|---|---|
| MODEL 301C O.A.T. CELSIUS, AMBER LED (TEMP. PROBE INCLUDED) | 10-08312 | $334.00 | |
| 301C WITH 3 PIN CONNECTOR FOR PROBE, AMBER LED (TEMP. PROBE INCLUDED) | 10-03316 | $339.00 | |
| MODEL 301F O.A.T. FAHRENHEIT (TEMP. PROBE, AMBER LED INCLUDED) | 10-08512 | $352.00 | |
| 301F WITH 3 PIN CONNECTOR FOR PROBE, AMBER LED (TEMP. PROBE INCLUDED) | 10-03317 | $349.00 | |
| O.A.T. CELSIUS WITH GREEN LED | 10-04543 | $348.00 | |
| O.A.T. CELSIUS WITH WHITE LED | 10-04544 | $348.00 | |
| 301C WITH 3 PIN CONNECTOR FOR PROBE GREEN LED | 10-04545 | $349.00 | |
| 301C WITH 3 PIN CONNECTOR FOR PROBE WHITE LED | 10-04546 | $349.00 | |
| O.A.T. FAHRENHEIT GREEN LED | 10-04547 | $360.00 | |
| O.A.T. FAHRENHEIT WHITE LED | 10-04548 | $358.00 | |
| 301F WITH 3 PIN CONNECTOR FOR PROBE GREEN LED | 10-04549 | $361.00 | |
| 301F WITH 3 PIN CONNECTOR FOR PROBE WHITE LED | 10-04551 | $361.00 |
Overview
Davtron M301 Features:
Download M301 Brochure Davtron FAA PMA # PQ1062NM |
Installation
- Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
- FAA/PMA Approvals:
- Schweizer Model 269D
- Diamond Aircraft Model DA20-A1
- Download FAA 337 Form
Specifications
- Temp. Range: 301C -40°C to +100°C Accuracy ±1% of full scale
- Temp. Range: 301F -40°F to +199°F Accuracy ±1% of full scale
- Input Voltage: 14 to 28 Volts
- Input Current: 150 mA max.
- LED Display
- Operating Temp.: -25°C to +60°C
- Weight: 4 ounces
- Warranty: 1 year
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the digital OAT probe is included, along with 4 mounting screws. A picture of the probe can be seen under part number 11-10717.
That is correct. Other installations would require to be installed with a 337.
