Davtron Digital Voltmeter / Outside Air Temperature Model 303
| Description | PN | Price | Buy |
|---|---|---|---|

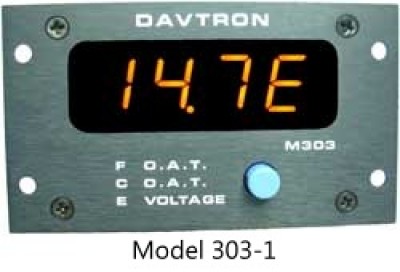

| MODEL 303-1 O.A.T. F & C VOLTAGE FRONT MOUNT (TEMP. PROBE INCLUDED) | 10-24565-14-2 | $398.00 | |

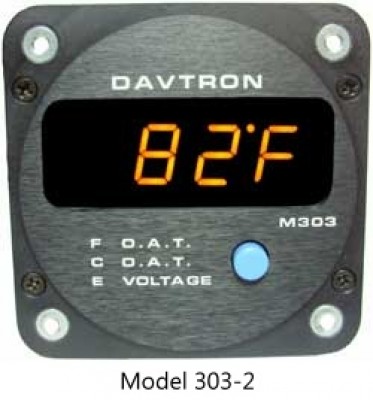

| MODEL 303-2 O.A.T. F & C VOLTAGE REAR MOUNT (TEMP. PROBE INCLUDED) | 10-24565-14-1 | $377.00 |
Overview
Davtron M303 Features
Davtron FAA PMA # PQ1062NM Download M303 Brochure |
Installation
- Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
- FAA/PMA Approvals
- Beech 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33 and 35-A33.
- Download FAA 337 Form
Specifications
- Temperature range: -40°C to +100°C
- -40°F to +212°F
- Operating Temp: -25°C to + 60°C
- Voltage Range: 10 to 32 Volts +/- 0.2 Volts Typ.
- LED with automatic dimming
- Input Voltage: 14 to 28 Volts
- Input Current: 100 mA max.
- Weight: 5 ounces
- Warranty: 1 year
Reviews
Not 4 specifics screws included
Verified Purchase
Davtron Model 303-2 O.A.T. F & C Voltage Rear Mount Temp. Probe Included
Best location to place probe thru fuselage on a pa28 180?
Overall appearance is nice, appears well made. Complaints are - 1) the probe is hard wired to the instrument and about 1/2 in diameter, so hopefully you have the room to run the probe where you need it otherwise you will be cutting and splicing the probe wire. 2) The mounting screws are 4-40 which is fine for a new install but if replacing an existing instrument you will be finding yourself retapping the threads in the gauge to 6-32.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The wire supplied is 12 ft long.
