Home / Instruments / J.P.I. / Fuel Scanners /JPI Fuel Scan FS-450-H High Flow - Up To 120 Gph
Main Image

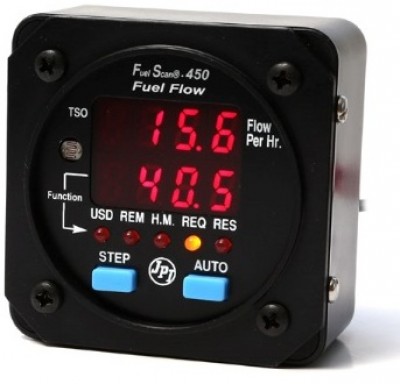

JPI Fuel Scan FS-450-H High Flow - Up To 120 Gph

0 Reviews 2 Answered Questions
$2155.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-13931
MFR Model# 450000-H

Overview

  • TSO C44b
  • Continuous display of fuel burned,in upper display in
  • Gallons per Hour. Liters and Lbs per hr also available.
  • An amazingly low price includes Instrument harness and a Flow Scan 201 or 231 transducer.
  • Upgrade your old Hoskins, or Shadin System. Will function with any K factors; connector is pin to pin compatible.
  • Automatically calculates the K factor.
  • All programming done from the front panel.
  • Size 2.25" diameter (small hole)
  • Light Weight 5 oz with Super Thin 1.5" depth
  • Three year warranty. (yes, the only three year warranty around!)
  • Serial port sends and receives data from all GPS units, even handhelds.
  • Calculates fuel to next waypoint.

Displays All These Functions:

  • Total Fuel Used
  • Fuel Remaining
  • Endurance in Hours and Minutes
  • Fuel Required to next Waypoint
  • Fuel Reserve at Next Waypoint
  • Nautical miles per Gallon

Features

  • FS-450 Can Mate to an old Shadin or Hoskins System.
  • Gallons per hour can be changed tap litres or Lbs.
  • QUE lights indicate which function is being displayed in the lower display
  • Auto Button, starts the automatic scan of the functions. Rate can be set from 1-9
  • Continuous display of fuel burn in Gal/Lbs/Litres per hour.
  • Step button can index information forward or backward. All programing done easily from the from panel with two buttons and no switches to toggle.

Documents

In The Box

  • Indicator
  • Fire Sleeve
  • Harness
  • Transducer
  • Pilots Guide

Videos

https://www.youtube.com/embed/FOLXKNBXIcY
https://www.youtube.com/embed/FSEeD0Zr5I8

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Looking at the high flow fuel transducer, can you please tell me the size inlet and outlet fittings this comes with.

According to the manual the fuel ports are 1/4 inch female NPT.

Q: Second question with regards to the high flow transducer. What is the P/N for electrical connector to connect the FS450. Does the kit come with the connector?

The instrument will include a harness, which has the connector for the unit. For more information please refer to the installation manual in the Documents tab.
