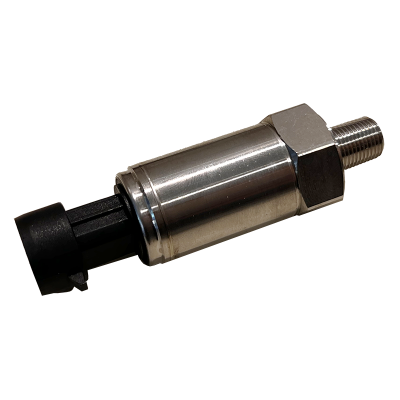

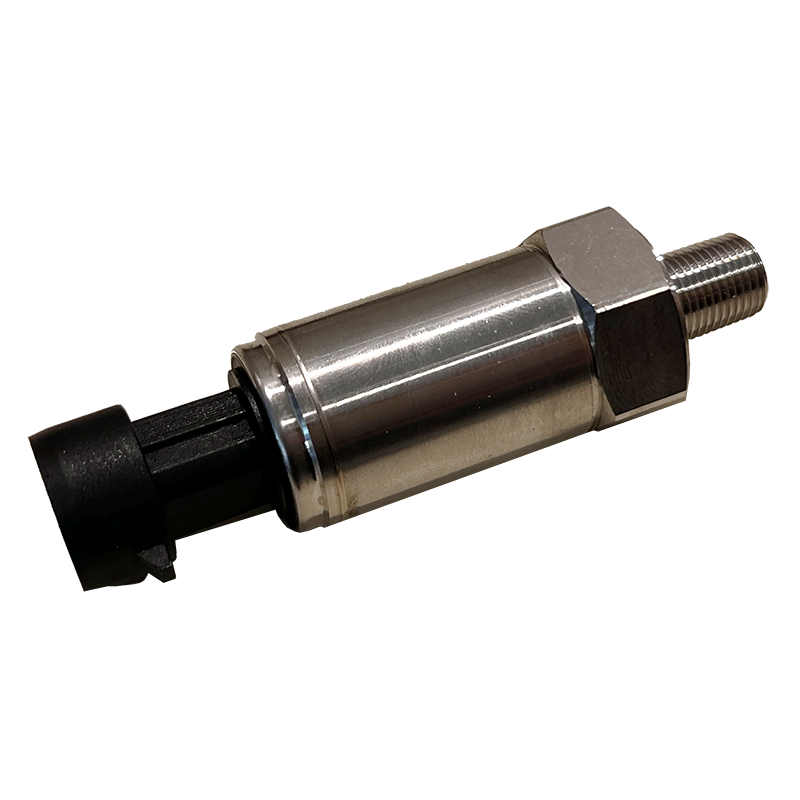

Radiant Fuel Pressure Sensor RI-2024-4

$148.95/Each
Quantity
Add to Wishlist
Part# 10-07688
MFR Model# RI-2024-4

Overview

The Fuel Pressure Sensor inserts into any 1/8 or ¼ NPT fitting in a fuel tank. It detects differential pressure between 0 and 1.5 bars of pressure and provides an output ranging from 0.5 to 4.5 volts. It is powered by five volts. This Fuel Pressure Sensor is ideal for users who wish to connect a pressure sensing fuel probe directly to an EFIS. The EFIS then calibrates the probe. (Radiant does not manufacture EFIS devices.)

Pairs with the FUEL LEVEL COMPUTER to provide calibration and display.

Features

  • 1/8 NPT sensor (comes with 1/4 NPT adapter)
  • Stainless Steel construction
  • Nominal +5V power supply
  • 0.5 to 4.5v output
  • 3 wire shielded harness is included (ground, +5, output)
  • ¼” NPT and included 1/8” NPT adapter
  • Ideal for direct connection of fuel pressure sensor to EFIS systems
  • Length of 2.7”, not including harness
  • Accuracy of 0.5% full scale
  • Useful for fuel and liquid tanks with a height to approximately 60”
