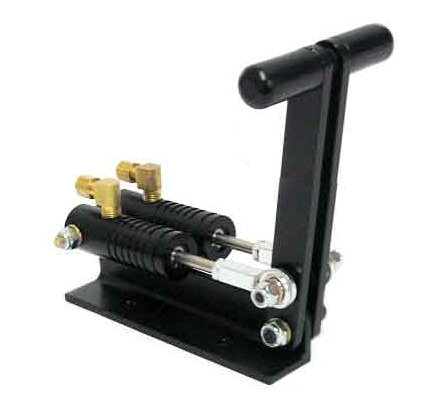

Hegar Master Cylinder 7 Inch Complete - Dual T-Levers

Select Bore Size:
1/2 Inches5/8 Inches
Quantity
Add to Wishlist

Overview

7" dual lever, hand operated. Designed for differential braking. Comes in your choice of 1/2" and 5/8" bore sizes.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Super product. Extremely well made. I think a guy ought to have a choice between 1/8” and 1/4” lines, but maybe theres a reason for the small lines. Put another angle support on the bottom. I put one on my unit.

Doug C Verified Purchase

Master Cylinder 7 Complete Dual T-Lever 1/2 Bore

June 23, 2021

Jean-yves L
May 27, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size are the line fittings on the Hegar 7 In Dual Lever master cylinder?

Per the vendor, they are 3/16", will fit standard hose.

Q: What are the width, height and length dimensions at their extremities of this unit?

The levers are 8" tall and 4" at their widest point. The base is 6.5" long and 3" at its widest point.

Q: Can mil-spec 5606 aviation red brake fluid be used in these cylinders?

MIL-spec 5606 can be used, Dextron fluid is recommended.

Q: Is this part 06-01280 suitable for mineral oil?

The master cylinder is suitable for mineral oil. The brake cylinder is not compatible with mineral oil.
