EfII Electric Boost Pump Mdl
MFR Model# BPM-1
Overview
|

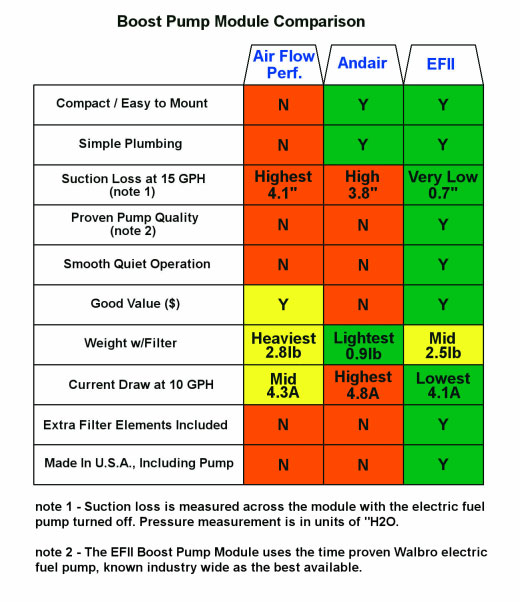

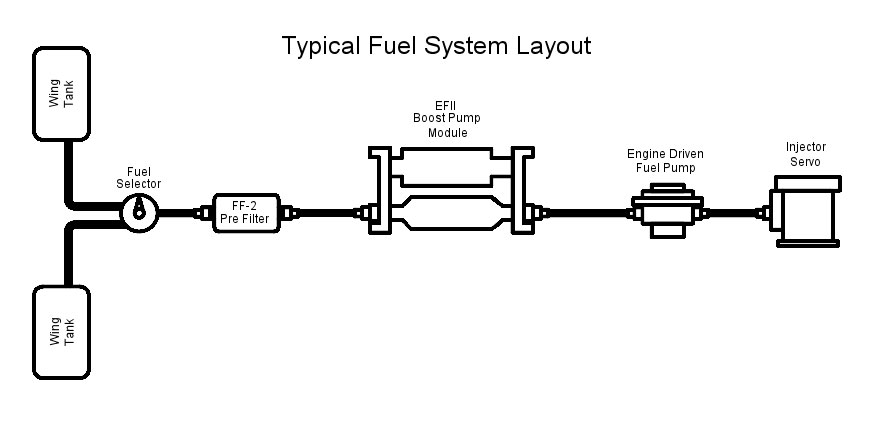

The EFII Boost Pump Module (BPM) is the only product in its category that is professionally engineered for maximum performance and reliability. The BPM delivers the lowest suction loss, most stable pressure regulation, and highest quality components of any boost pump product currently available.The EFII Boost Pump Module also brings a new level of installation simplicity and functionality to the fuel system of your aircraft. The BPM reduces a time consuming and frustrating plumbing job to a simple and clean, easy to set up installation. The Boost Pump Module is used to supply a steady source of 30 PSI fuel to your engine during take-off, landing, priming, or emergency situations. The BPM has integral back flow prevention and pressure regulation valving.
Note: Only comes with 1 pre-filter |
Features
- Ideal boost pump solution for any mechanically fuel injected aircraft engine through 600 cu.in.
- Fully engineered solution provides superior performance compared to alternatives.

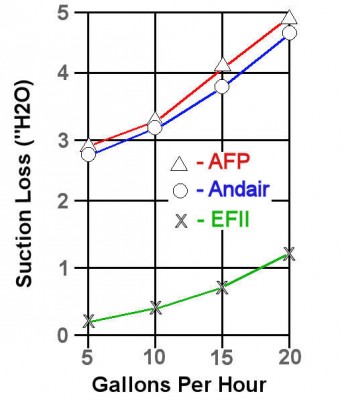

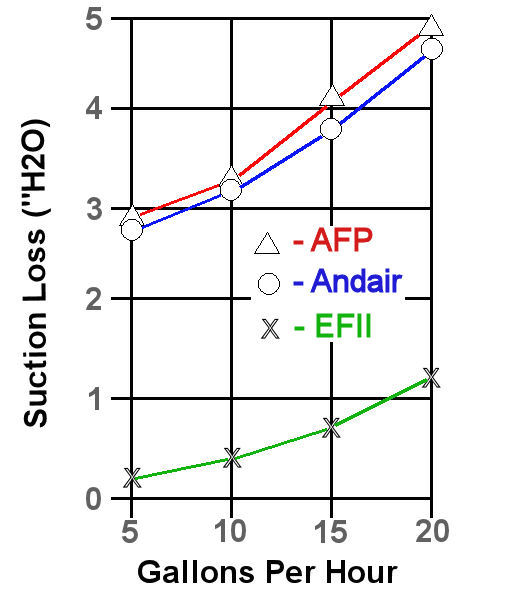

- Low suction loss while operating in draw through mode helps prevent fuel cavitation at altitude.
- Uses high quality Walbro fuel pump (made in USA).
- Integral plumbing through large internal fuel passages offers no restriction to pump output.
- Integral mounting bosses can be bolted directly to floor or firewall.
- Included kick plate keeps fuel lines safe when installed in foot well area of cockpit.
- Includes AN-6 (3/8" ID) input and output fittings.
- Overall dimensions: 3.6" wide, 8.65" ;long, 1.9" thick (with kick plate installed).
- Includes pn FF-2, 90 micron pre-filter.
- All mounting hardware included.
Documents
In The Box
- Complete BPM system includes Boost Pump Module with kick plate, mounting hardware, and 1 pre-filter.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, no you will not need any of this for the install.
Per the manufacturer, it's about 0.1 inches.
This boost pump module uses 4.1 amps.
This is a 12V system with a maximum flow rate of 45gph-50gph.
Approx 3 lbs
These kits come with two FF-2 filters, one for when the unit is installed and the second for when the first annual. They should be changed at each annual, the filter part number is 07-19990.
Yes, it can be mounted in any position.
The pump does not require a blast tube if firewall mounted. The included heat shield should be used and it should be mounted away from exhaust pipes as is practical.
