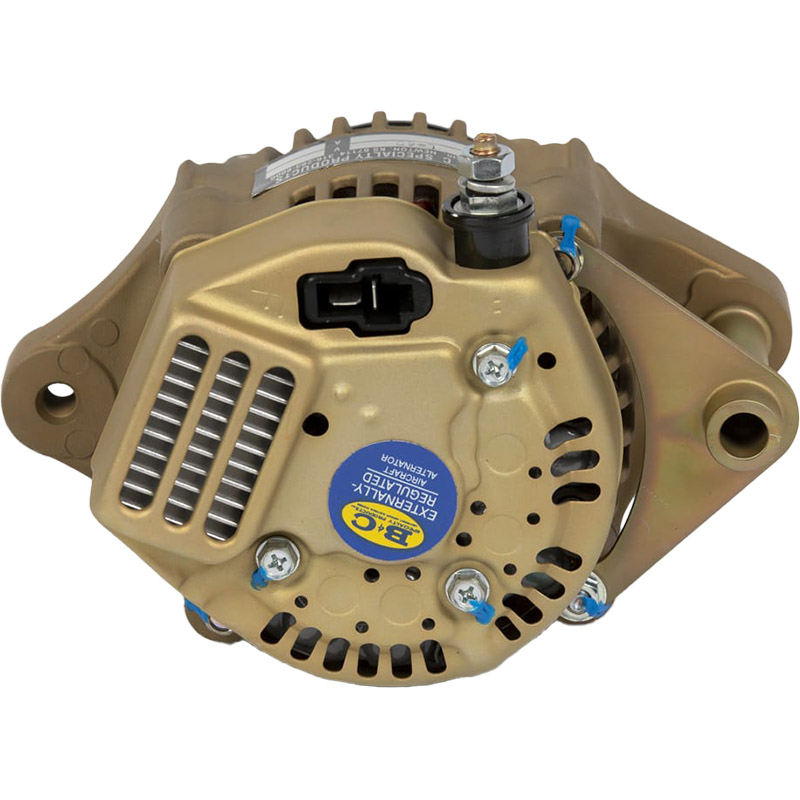

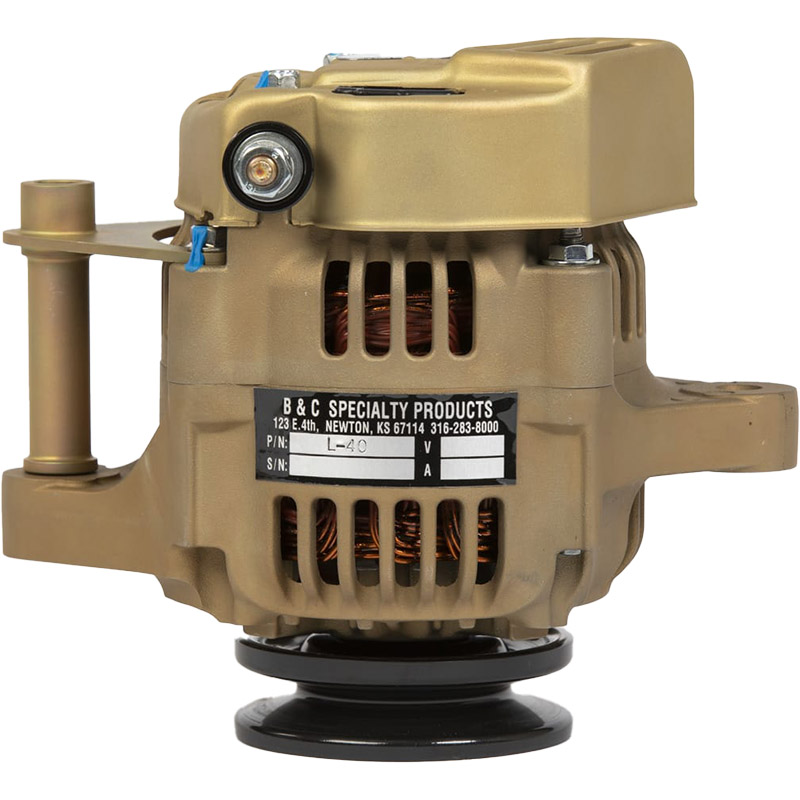

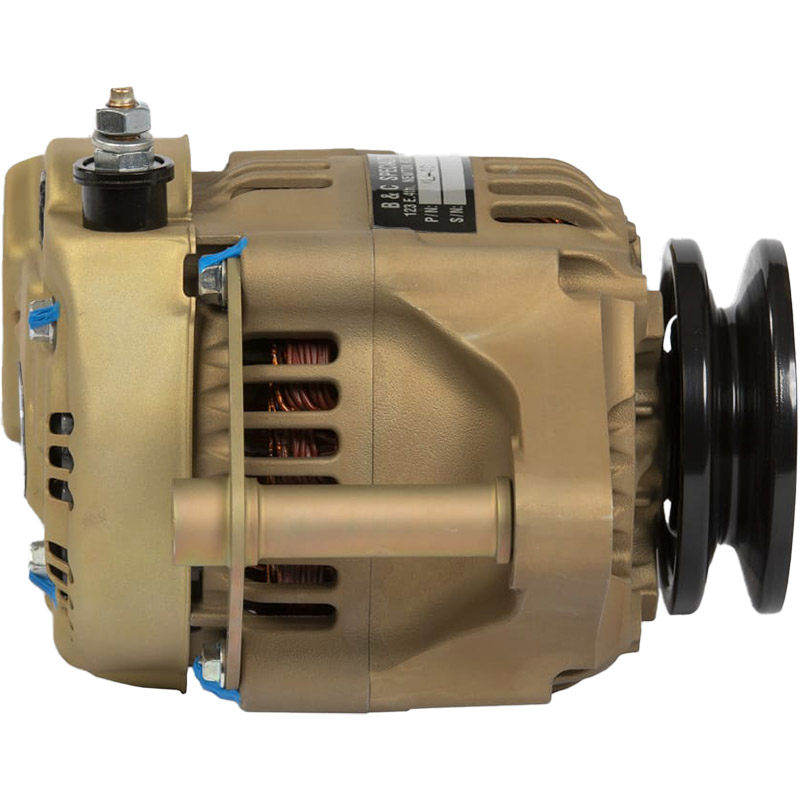

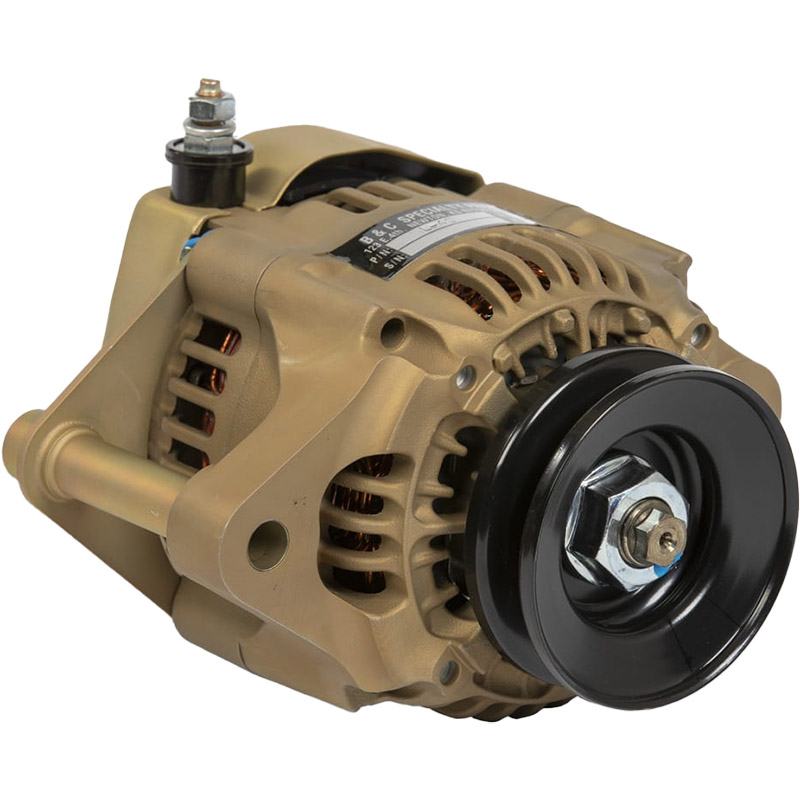

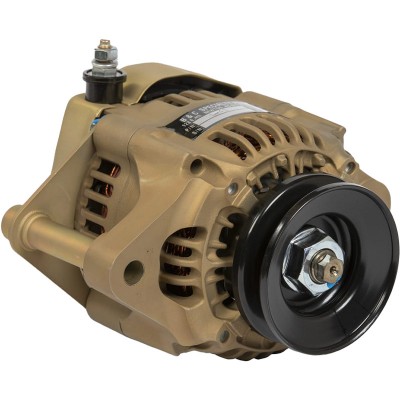

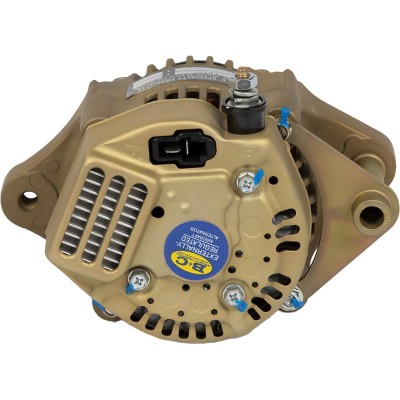

B&C L-40 Alternator With Boss Mount Homebuilt
MFR Model# L-40 FK5400-1 7365
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
| Description | PN |
|---|---|
| L40 Alternator with Boss Mount | 07-06815 |
Overview
|
The L-40 Alternator from B&C Specialty Products is a high-performance, belt-driven alternator for Lycoming engines that make ideal power sources for aircraft requiring ample electrical output, modest weight, and exceptional reliability. Weighing just 6.1 lbs., it is produced from all NEW components (absolutely NO remanufactured content), and features sealed heavy-duty ball-bearings and built-in cooling fans to insure trouble-free service that gives you the best value for the long term.

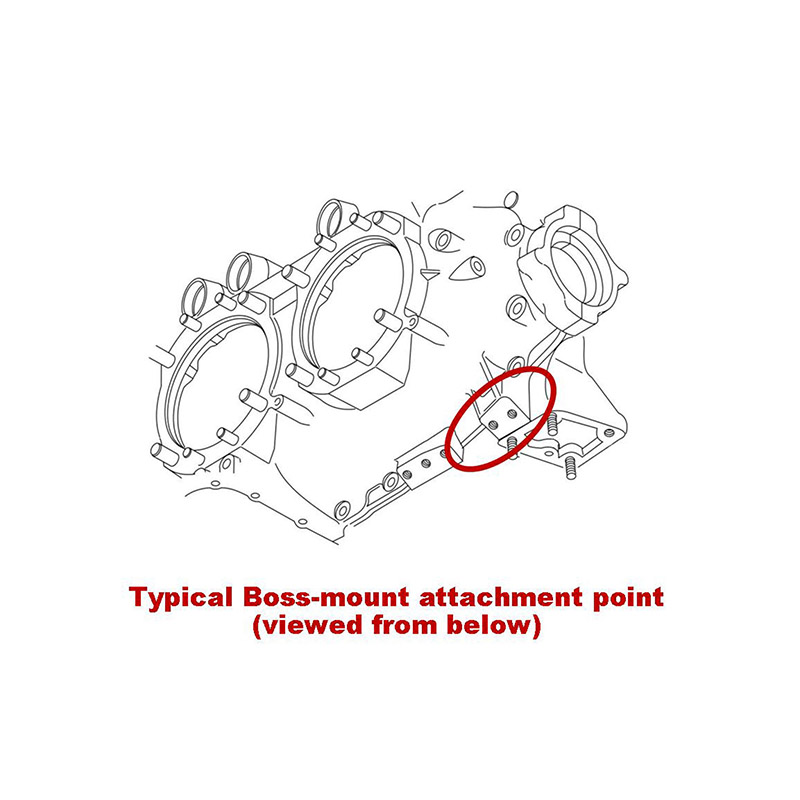

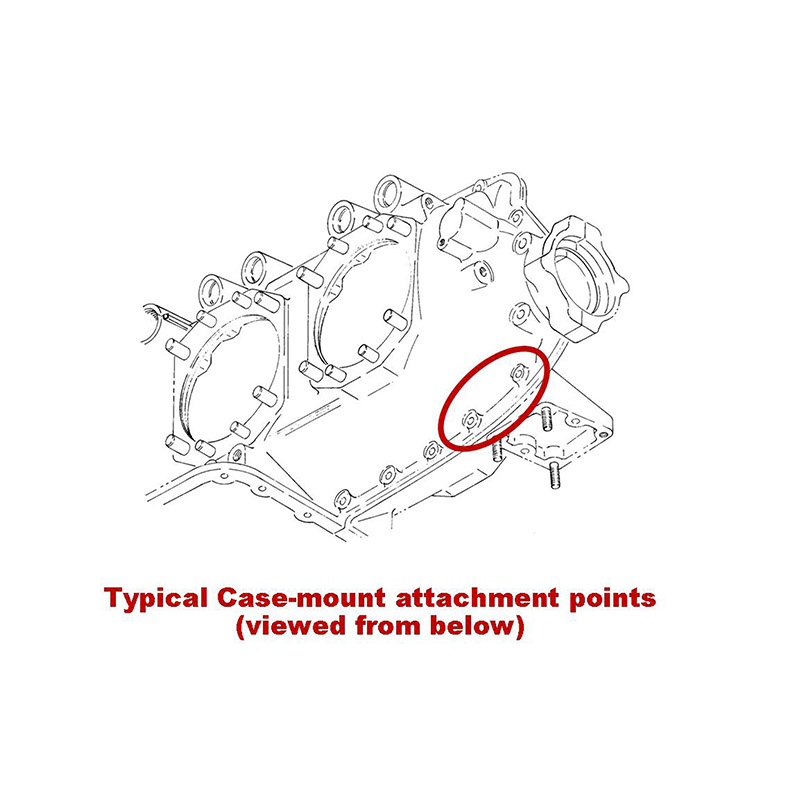

There are similar-looking units on the market, but the similarity begins and ends there. Dynamically-balanced alternator rotors to promote good bearing and bracket life. Uniquely modify each alternator for use with a more sophisticated, aircraft style, external voltage regulator with over-voltage protection (such as LR3C-14 or LS-1A), instead of leaving in place an internal regulator better suited for automobiles. And on the L-40, a third attachment point to insure solid, stable support (look closely—many of the “look-alike” competing alternators only have two attachment points). Available for both 14 volt and 28 volt applications, the L-40 Alternator comes complete and ready to install, with either a Boss Mount kit or Case Mount kit. The Boss Mount kit for the L-40 mounts on the machined pad on the bottom of the engine opposite the starter and uses a U-shaped bracket and two 5/16" national coarse bolts. The Case Mount kit for the L-40 mounts to the case halves by using the two 1/4" case half bolts. NOTE: L-40, BC460-H, BC410-H, and BC462-H alternators require external regulators - use: P/N 07-06742 (LR3C) for 14V Primary, P/N 07-06786 (LS-1A) for 28V Primary, P/N 07-03461 (SB1B-14) for 14V Standby, and P/N 07-03462 (SB1B-28) for 28V Standby. |
Reviews
B&C products are all top quality!
Verified Purchase
B&C L-40 Alternator With Boss Mount Homebuilt
High quality. Had to replace the belt from original alternator which required prop removal. New belt was included with alternator. . My original belt was a little too long for the B and C alternator
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, these kits are intended for use in experimental aircraft only.
The boss mount has a "boss" cast onto the crankcase. The case mount has a bracket that mounts to the spine bolts.
Most lycomings made in the last 3 decades have boss mount. The older engines are the ones with case mount. Boss mount is much better. The case mount brackets work but are subject to more bending and likely to crack easier. If unsure, please contact sales for clarification of which you need for your application.
Yes, it will come with a pre-wired field connector.
No. These require an external regulator.
The L-40 comes with a kit that includes the bracket and tension arm.
Correct, 40 amps is the output.
