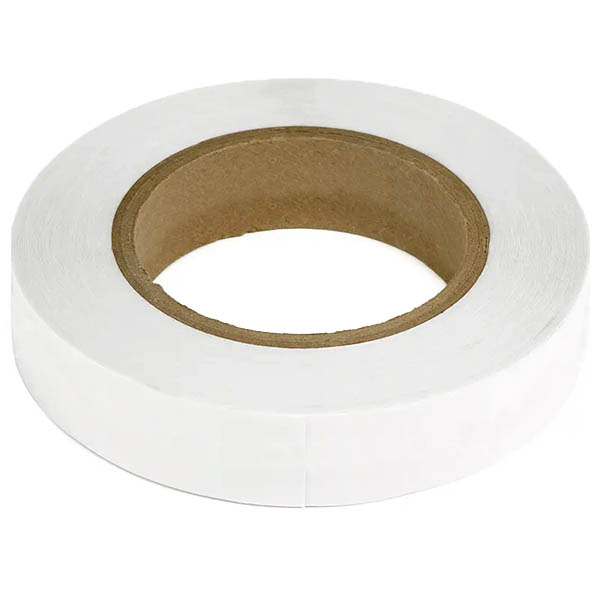

Surface Tape Dacron 1 Smooth

$13.50/Each
Part# 09-15000
MFR Model# 01-01169
WidthEdgePart Number
1-inchSmooth09-15000

Overview

Note: All sizes and types sold in 50 yard rolls

A layer of 2.7 oz. Dacron fabric strips or tape laminated into a layup as if it were an extra ply of glass. The peel coat wets out with epoxy like glass cloth and cures along with the rest of the layup. However, the Dacron does not adhere structurally to the glass and when peeled away it leaves a surface ready for glass-to-glass bonding without sanding. Poly/Dacron blend is excellent as peel ply for composite lay-ups.

Requirements for Small Aircraft

  • 3 Rolls of 1" x 50 Yds. Tape
  • 2 Rolls of 2" x 50 Yds. Tape
  • 1 Roll of 3" x 50 Yds. Tape
  • 1 Roll of 4" x 50 Yds. Tape

Reviews

Used this peel ply in the build of a cedar strip canoe. Created a perfect fillet between the hull and keel.

John C
March 29, 2021

great stuff

Jerry C
February 26, 2021

Ordered a roll of 4 peel ply for a current build. This product is the real deal, works perfectly on seams so less work finishing. Great product, easy on line order, prompt delivery, excellent price.

Charles H
January 19, 2021

Just fine

Russ
January 12, 2021

The 3-inch wide Peel Ply with pinked edges peels up nicely after cure without leaving behind stray strings.

William P
March 9, 2020

Works great and is a lot easier than making it myself from sheets of peel-ply. The pinked edges are also great for minimizing stray nylon fibers.

Bo W
September 16, 2019

YAY! The 1 wide tape 09-15000 arrived with FINISHED EDGES! No more frayed edge threads stuck in the epoxy when used as peel-ply.

Gregory A
March 8, 2019

Great job supplying Peel Ply for my, now 42 year LongEZ N724DT project. I have relied on Aircraft Spruce for the entire project and have never been disappointed with their service and support. See www.OnWingsofGlass.com for a history of my never ending project and long deferred dream of flying my own aircraft. When I take to the wild blue yonder on my wings of glass, Ill forever shake the bonds of earth and soar with the Eagles!

Lawrence K
February 1, 2019

School uses it for Peel Ply on Composite project. Leaves a nice smooth finish for overlap.

Ed B
August 25, 2017

While building a 50% scale Dalotel, I like to put in as many details as possible and this product is another part of it ,

Roger F
February 19, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What does pinked mean with these Peel Ply tapes? Regarding part numbers 09-15450 & 09-15000

Pinked refers to the edge of the tape. There are straight edges and pinked edges. Pinked is a teeth-like pattern on the edge of the tape. "Pinked edges are used to increase the amount of surface that can actually adhere to the aircraft fabric when the tape is cemented in place. The actual edge area that will be cemented in place increases by over 41% when pinked edge tape is used versus straight edge tape." (credit: Ron Alexander) When working with composites, straight edge tape is primarily used. In fabric aircraft covering, pinked and straight tapes are used.

Q: Is there an MSDS for this product DACRON PEEL PLY SURFACE TAPES?

Per Vendor: We don't have one for this product because it is 100% polyester with no dye or finish (it is scoured to remove 99%+ of the processing chemicals used to weave it), but I will see what I can put together.

Q: Is Dacron Peel Ply tape same thing as finishing tape?

Yes, it is a polyester type like finishing tape used in fabric covering. It is used on experimental aircraft.

Q: Is each roll of peel ply tape 50 yards long?

Yes, each size listed is sold in 50 yard rolls.

Q: Is this the same Dacron as is used in the bias tape ?

It is basically the 102 Dacron cut into a strip.
