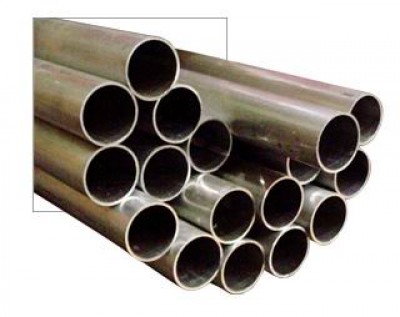

- Photo may represent series and not specific product
- SHARE
5052-0 Aluminum Tube 1/8X.035 - 6 Foot
MFR Model#
| O.D. In. | I.D. | Thick. | Wt./Ft. (lbs.) | Length | Part Number |
|---|---|---|---|---|---|
| 1/8 | 0.069 | .035 | 0.010 | 6 ft | 03-39100-6 |
Overview
|
If manufacturing test reports are required, there is a minimum $15.00 charge per order. Please indicate in the special instructions box at the time of order that certs are required. Rigid 5052-0 aluminum alloy tubing is used for low and medium pressure hydraulic systems, fuel lines and oil lines. This tubing will withstand a higher pressure than 3003-0 tubing. |
Reference Chart
Reviews
Excellent, tubing undamaged and unblemished upon arrival and receiving. Container was sturdy and rigid which helped greatly in protecting the tubing, Outside of the container showed a lot of wear and tear for such a short trip, but it arrived safely. The tubing is proving to be the right choice for the application. Thank you Aircraft Spruce.
Just fine as usual- Thank you for your good products and service. Richard Buchanan owner of the Ryan Model 72
Fast shipping as always.
Great packaging
It is As advertised, Great for making brake lines and other hydraulic lines.
Worked well.
Excellent bending qualities for a tube of this size. Using mine for the breather tube on my Long EZ.
Ordered tubing and it was delivered a few days later. The tubing was secured to a wooden board to prevent it from being damaged. Very happy with product, service and shipping.
These rods are of sturdy quality and were cut to the size I requested. Shipping was very fast as I received them within 2 days.
Quality aluminum and cut to my specificatins.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, one use for 5052-O is bending for forming lines.
Per the cert, yes, this material does meet WW-T-700/4.
Yes, per the cert, this material meets AMS 4070M and ASTM-B-210-12.
5052-0 is commonly used for fuel, oil, and brake lines, but we recommend you consult with the aircraft OEM, or designer, to verify the material they recommend for this application.
Yes, this material can be gas, arc and resitance welded.
Yes, its soft aluminum tube, and can be coiled. It is non returnable if coiled.
The prices listed in the grid are per length. The -6 are priced per 6 foot piece, and the -12 are priced per 12 foot piece.
Part # 03-39100-6 is .035 wall x 6 ft length. For .049 wall x 6 ft length, please order 03-39250-6.
Yes, 5052 is one of the best alloys for bending.
Over 4 ft will incur additional handling charges. Lengths over 8 ft become more economical to go via LTL Truck.
