Whelen Hid Landing Lights For Cirrus SR20,SR22,SR22T Rectang

1 Review 2 Answered Questions
$3241.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 11-17565
MFR Model# LSM-500-082-19

Overview

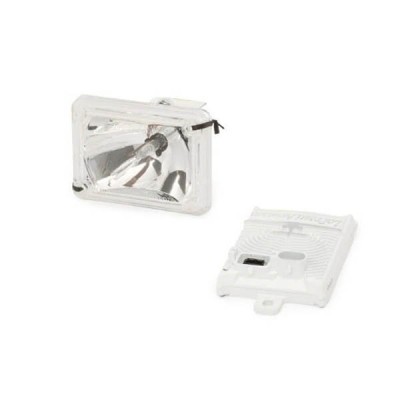

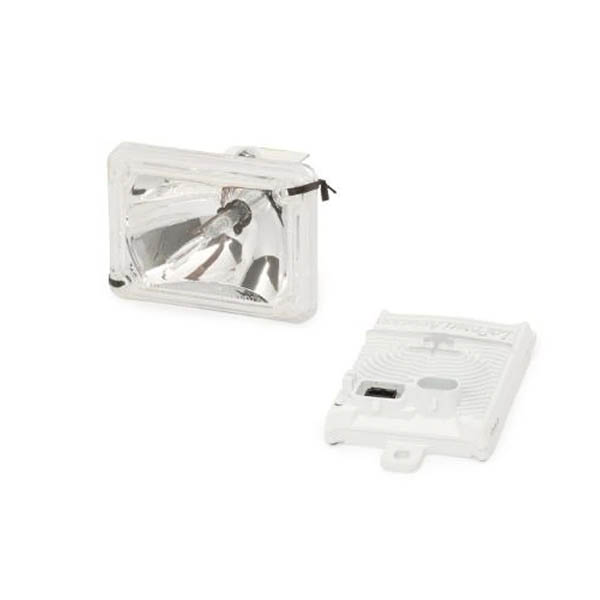

The Whelen Aerospace Technologies (WAT) BoomBeam HID lights is the best upgrade path for your Cirrus's landing light. We can provide a 7-time increase in light output. Greatly improving the safety of both day and night operations. This 85-watt BoomBeam consists of a new glass lens, reflector assembly, new lamp, 2 cables and the latest technology 85-watt ballast, and all the hardware necessary to install the kit. As a previous OEM supplier to Cirrus WAT has produced thousands of these units. We used that knowledge gained to create the best landing light available for your Cirrus. Our reflector technology is the best in the market. We married this improved reflector with our latest technology 85-watt ballast to create a light upgrade that improves light output by 700% over the factory installed light But we did not stop there. We know that each pilot wants his airplane set up just for him. Some want a broad, wide landing beam and others, (that may have our TriTips installed), want to maximize the range of the light. The WAT BoomBeam light is tuneable so you can adjust the light for a custom fit to you and your aircraft.

    IMPORTANT USE THE FOLLOWING GUIDE TO CHOOSE THE CORRECT SKU:
  • LSM-500-082-17 - Round Cowling Light - Fits SR20 S/N: 1148-1422 and SR22 S/N: 0119-0820
  • LSM-500-082-19 - Rectangular Light - Fits SR20 S/N 1423-2043, SR22 S/N 0821-3495
  • LSM-500-082-21 - Rectangular Light - Fits SR20 S/N 2044 - 2126, SR22 S/N 3389 - 3827, SR22T with HID lights
  • LSM-500-082-27 - LED to HID, Rectangular Light - Fits SR20 S/N 2127 and Subsequent SR22 S/N 3828 and Subsequent SR22T With Factory installed LED Lights

Benefits

  • 9 Times Brighter Than Stock Light
  • Easy Installation
  • Tunable Beam Widths
  • Produces 3 - 15 times more light, engineered specifically for each model aircraft.
  • Increases safety, see and be seen
  • Reduces electrical loan and heat output
  • Decreases AOG time for lighting issues, no filament to break
  • 5 year/ 5,000hr warranty, a proven system based on time-tested experience
  • More closely approximates the color temperature of Natural Daylight
  • FAA STC and PMA for hundreds of make/models of aircraft
  • Thousands of installations worldwide
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

This light is amazing. Many times brighter than the factory light in my Cirrus. I purchased at Aircraft Spruce and had a local mechanic install it. Took about 5 hours.

John B Verified Purchase

Whelen Hid Landing Lights For Cirrus SR20,SR22,SR22T Rectang
February 28, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the STC number for the WAT HID Boom Beam landing light?

STC# SA02279AT

Q: What type of HID bulb is used on WAT part number LSM-500-082-27. What temperature (K) is the light?

We use a Philips D1S lamp, and the color temperature is 4,700 Kelvin.
