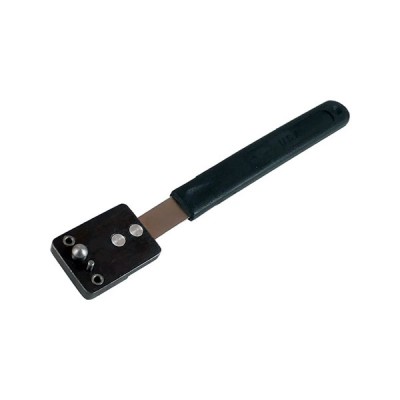

Single Mini Lug Plate Nut Drill Jill 10-32

$96.75/Each
Part# 12-04788
MFR Model# NPJ518JD
Mfr. PNNut Thread
Reference
(C) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number
NPJ518JD10-320.2500.2180#4012-04788

Overview

Single Wing Miniature Nut Plate Drill Jig (SWM) Features:
  • Single Wing Miniature Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this jig plate work for the MS21061 series anchor nuts?

Yes these can be used with MS21061 anchor nuts.
