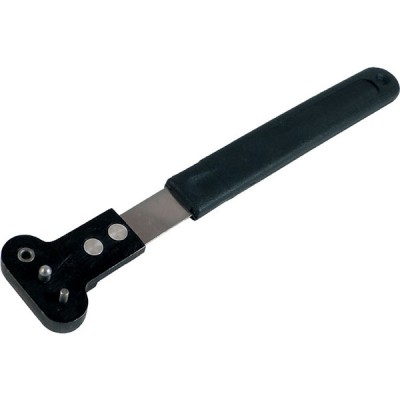

Two-Lug Plate Nut Drill Jig 8-32
MFR Model# NPJ518B
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Mfr. PN | Nut Thread Reference | (C) Hole Spacing | (J) Hole Spacing | (P) Pilot Diameter | (K) Drill Size | Part Number |
|---|---|---|---|---|---|---|
| NPJ518B | 8-32 | 0.344 | 0.688 | 0.1640 | #40 | 12-04791 |
Overview
|
Two-Lug Double Wing Standard Nut Plate Jig (DWS). Two-lug double wing standard nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies' hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use. |
Reviews
Good tool with a flexable handle to get in tight places
Verified Purchase
Two-Lug Plate Nut Drill Jig 8-32
Just get one of these tools for your application. I should have bought one years ago, yeah, sorta embarrassing I didnt!
Verified Purchase
Two-Lug Plate Nut Drill Jig 8-32
Works great
Verified Purchase
Two-Lug Plate Nut Drill Jig 8-32
This tool was a quality design that made drilling holes for plate nuts much easier. I would buy it again.
Verified Purchase
Two-Lug Plate Nut Drill Jig 8-32
The main pins were a bit tight so a little difficult to remove after drilling nutplate holes.
Good quality. Made the job easy.
