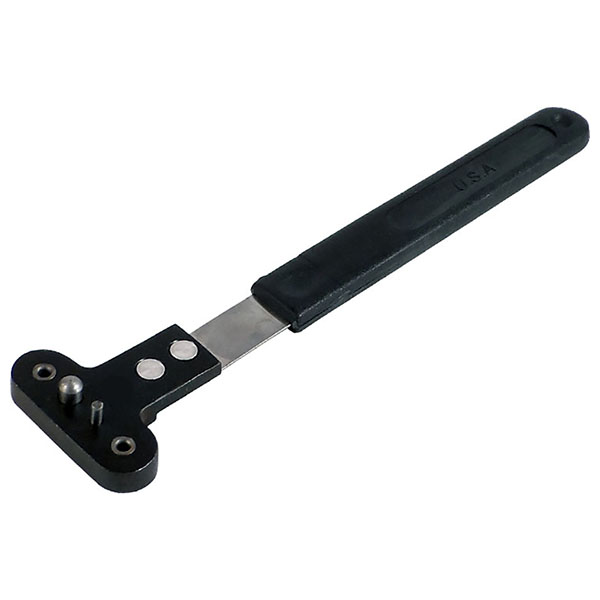

Single Lug Plate Nut Drill Jig 6-32

$87.75/Each
Part# 12-04781
MFR Model# NPJ518G
Mfr. PNNut Thread
Reference
(C) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number
NPJ518G6-32.344.1390#4012-04781

Overview

NPJ518G Single Wing Standard Nut Plate Drill Jig (SWS) Features:
  • Single Wing Standard Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good product. Flexable handle to get in tight areas

Bobby M Verified Purchase

Single Lug Plate Nut Drill Jig 6-32

December 9, 2023

Works well, can also do the job for a 2 lug drill jig if you have room to flip to opposite side.

Gary K
October 1, 2017
