Mfr. PN | Nut Thread Reference | (C) Hole Spacing | (P) Pilot Diameter | (K) Drill Size | Part Number |
---|---|---|---|---|---|
NPJ518J | 10-32 | .344 | .1910 | #40 | 12-04784 |

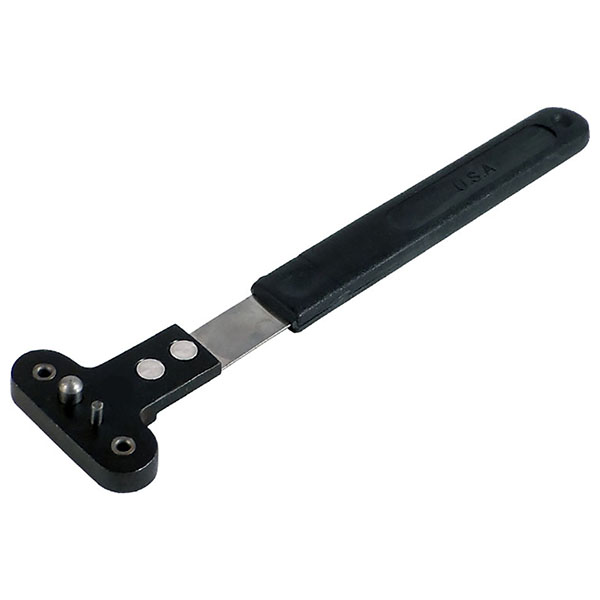

NPJ518G Single Wing Standard Nut Plate Drill Jig (SWS) Features:
|
Works well, can also do the job for a 2 lug drill jig if you have room to flip to opposite side.
