Home / Pilot Supplies / Safety/Survival / Life Vests /EAM P0723E-109P Helicopter Life Vest
Main Image

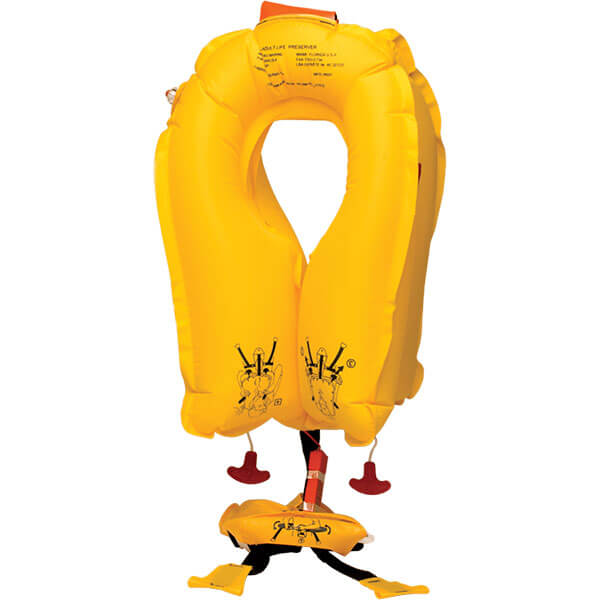

EAM P0723E-109P Helicopter Life Vest

1 Review 1 Answered Question
$186.90/Each
Quantity
Add to Wishlist
Part# 13-22367
MFR Model# P0723E109P

Overview

This twin cell vest comes in a standard or heavy-duty pouch engineered especially for use in helicopter tour operations. Pouch pack design buckles around the waist for constant wear. The life preserver can easily be pulled out and donned over the head with one quick motion, using a single hand.

Features

  • Inflatable Cell
  • Top Tab Instructions
  • Harness
  • Harness Pull Tab
  • CO2 Inflation System
  • Inflator
  • Oral Inflation System
  • Light
  • Light Battery

Specifications

  • Inflated Buoyancy: 35 lbs. (150 Newtons) minimum
  • Inflated Volume: 970 cu. in. (16 liters) minimum
  • Approvals: US FAA TSO-C13e approved
  • Category of Preserver: Adult Constant Wear
  • Weight of wearer: 35 lbs. (15.9kg) and above
  • Inflatable Buoyancy Cell: 2 Independent Cell
  • Material: Urethane Coated Nylon, Flame Retardant
  • Construction: RF Heat Sealed Seams
  • Inflation System: Manual CO2 Inflator and an Oral Inflation Tube.
  • Color: Passenger Yellow
  • Humidity: Functional Range: Up to 95% Relative Humidity
  • Altitude: -2000 to 45,000 feet above sea level
  • CO2 Gas Charge: 2 x 0.035 lbs. (2 x 16 grams)
  • Survivor Locator Light: Water-activated. TSO-C85 Approved.
  • Packaging Options: Standard Flame Retardant Fabric; Pouch with Metal Snap Fastener Closures; Heavy Duty Flame Retardant Fabric Pouch with Velcro Closures
  • Other Options: Whistle, Retroreflective Tape
  • Frequency of Inspection: Every 60 months
  • Temperature: Functional Range: -40 to 140 oF (-40 to 60 oC)
  • Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)

Documents

Reviews

Submit a Review

Brad L Verified Purchase

EAM P0723E-109P Helicopter Life Vest
February 11, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this EAM P0723E-109P Helicopter Life Vest flotation device approved for all ages?

No. This is for adults.
