Home / Rotax Engines & Parts / Parts / 912/914 Series / Starters /Rotax 912 | 914 Ul Electric Starter | Starter Relay
Main Image

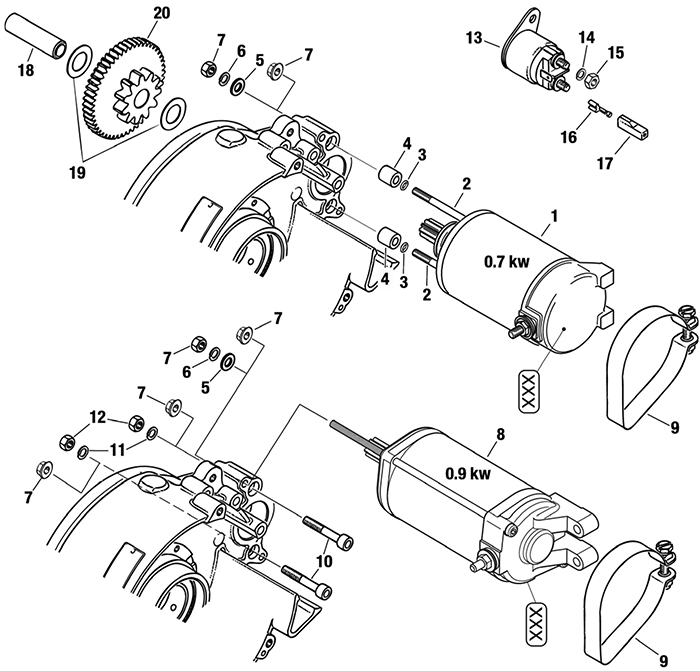

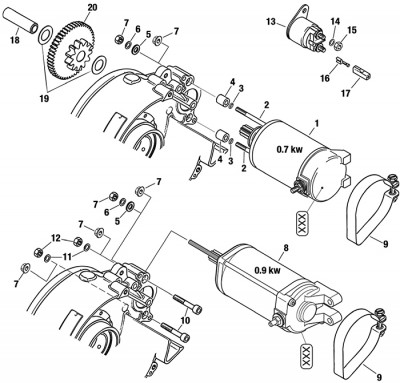

Rotax 912 | 914 Ul Electric Starter | Starter Relay

0 Reviews 0 Answered Questions
From $0.20 to $251.95
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. PN Price Buy
3950-420O-RING 5x1.5-N2
15-03401
$8.75
Quantity
4847-248SPACER 5.4/10/122
15-01321
$5.50
Quantity
5927-571WASHER 5.32d
15-02995
$0.20
Quantity
11945-830LOCK WASHER A52D
15-03358
$0.20
Quantity
12842-030ROTOR SUPPORT ASSEMBLY2d
15-01239
$3.60
Quantity
16960-719CONNECTOR SHEATH1
15-03664
$0.63
Quantity
18837-102IDLE GEAR SHAFT1
15-01034
$28.50
Quantity
19827-261THRUST WASHER 12.5/21.5/12
15-00833
$2.94
Quantity
20834-156IDLE GEAR 50/11 T1
15-01016
$251.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   See therefore: SB-912-037 current issue / SB-914-023
  • b   will be delivered in circle shape
  • c   standard starter 0.7 kW
  • d   Washer, lock washer and hex. nut replaced by hex. collar nut.

  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
Price
11
s.v.
945-750
 LOCK WASHER A5
2d
2d
2d
$0.20
