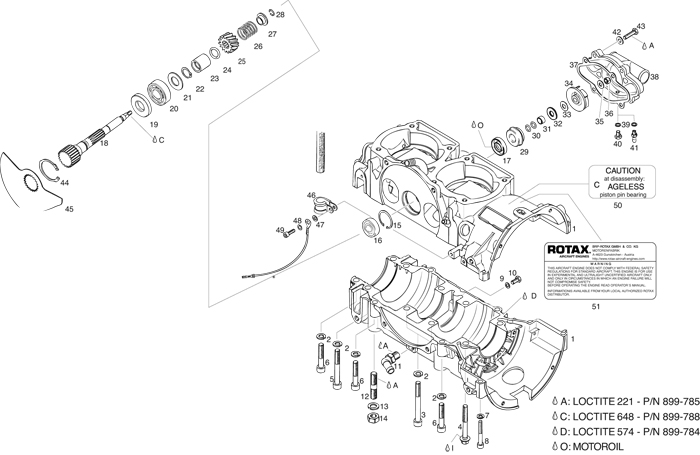

Rotax 618 Ul Engine Crankcase | Rotary Valve Drive | Water Pump Parts

1 Review 0 Answered Questions
From $0.42 to $100.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Status Rotax Part Number Description Qty PN Price Buy
4841-306COLLAR HEX. SCREW M8X65 SW 112
15-01167
$4.90
Quantity
5841-841ALLEN SCREW M8X65 DIN 9122
15-01214
$2.22
Quantity
6841-561COLLAR HEX. SCREW M8X65 SW 116
15-01192
$0.85
Quantity
10240-771HEX.SCREW M6X10 1
15-00153
$0.53
Quantity
15845-150RETAINING RING 30X1,2 1
15-01293
$1.79
Quantity
16932-330BALL BEARING 16101-Z 1
15-03064
$42.90
Quantity
17850-975OIL SEAL A 12X30X7 NBR 1
15-01493
$31.50
Quantity
19930-580OIL SEAL 20X40X7 1
15-03040
$25.50
Quantity
21227-439SHIM 17, 2/32, 5/1, 5 1
15-00043
$4.35
Quantity
22845-450RETAINING RING 17X1 1
15-01309
$1.12
Quantity
23847-282SPACER1
15-01324
$14.50
Quantity
24831-500O-RING 14-3 1
15-00919
$4.50
Quantity
27827-430SPRING HOLDING CUP 1
15-00842
$11.65
Quantity
29850-942ROTARY SEAL 1
15-01487
$90.90
Quantity
30430-800O-RING 8X2 2
15-00536
$8.65
Quantity
31847-810ROTARY SEAL SLEEVE 1
15-01382
$22.50
Quantity
33227-155FRICTION WASHER1
15-00041
$9.90
Quantity
40841-580HEX. SCREW M6X8 1
15-01194
$0.53
Quantity
43240-036HEX. SCREW M6X25 DIN 9334
15-00113
$0.79
Quantity
44945-880RETAINING RING 40X1,75 1
15-03377
$2.97
Quantity
45N.A.924-507ROTARY VALVE 151 DEGR. 1
15-02955
$100.75
Quantity
46851-250CABLE CLAMP 15/M51
15-01527
$6.65
Quantity
47827-800WASHER A 5,5 DIN 69021
15-00860
$0.42
Quantity
48945-750LOCK WASHER A5 1
07-00435
$2.81
Quantity
Subtotal $0.00
Add to Wishlist

Overview

ROTAX 618 UL Engine Crankcase, rotary valve drive, water pump parts.

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
