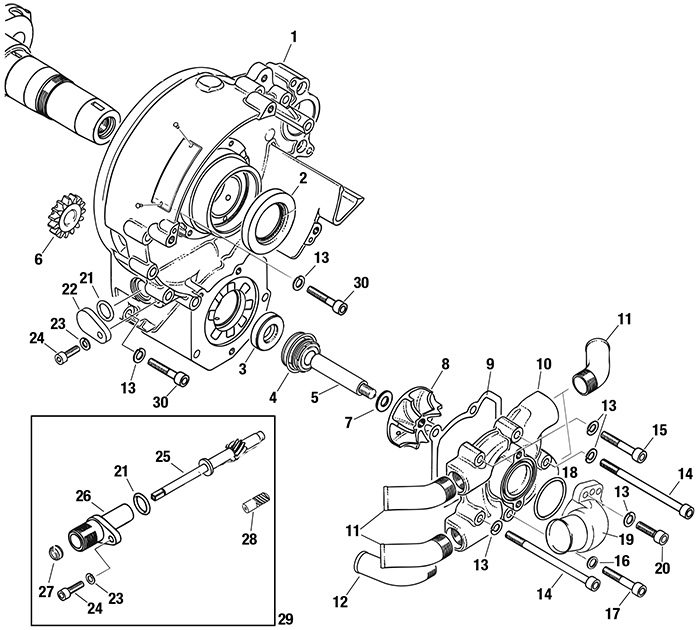

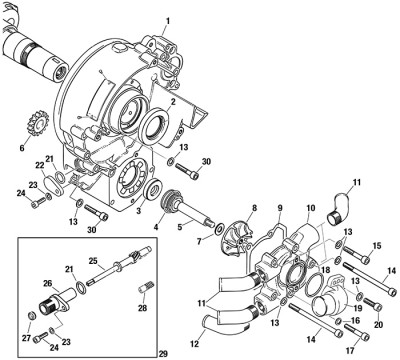

No. | Rotax Number | Description | Qty Req. 912 UL | Qty Req. 912 ULS | Qty Req. 914 UL | PN | Price | Buy |
---|---|---|---|---|---|---|---|---|
7 | 926-274 | WASHER 8.2/12.5/1.5 | 1ac | 1ac | 1ac | 15-02979 | $11.75 | |
14 | 241-482 | ALLEN SCREW M6X90 | 2 | 2 | 2 | 15-00180 | $2.22 | |
15 | 241-814 | ALLEN SCREW M6X35 | 2 | 2 | 2 | 15-00187 | $1.82 | |
17 | 241-813 | ALLEN SCREW M6X35, STAINLESS | 1a | 1a | 1a | 15-00188 | $1.35 | |
20 | 241-935 | ALLEN SCREW M6x20 | 2 | 2 | 2 | 15-09771 | $1.86 | |
21 | 230-880 | O-RING 13.3-2.4 | 1 | 1 | 1 | 15-00080 | $6.85 | |
23 | 945-830 | LOCK WASHER A5 | 1 | 1 | 1 | 07-00435 | $2.81 | |
27 | 930-500 | OIL SEAL 6X11X3/4.5 | 1 | 1 | 1 | 15-03033 | $18.65 |
- Items not illustrated
Explanations of symbols and statements in part number charts:
|
good
Bing Lock Washer A5 With Screw Only 5M 140-566-04
