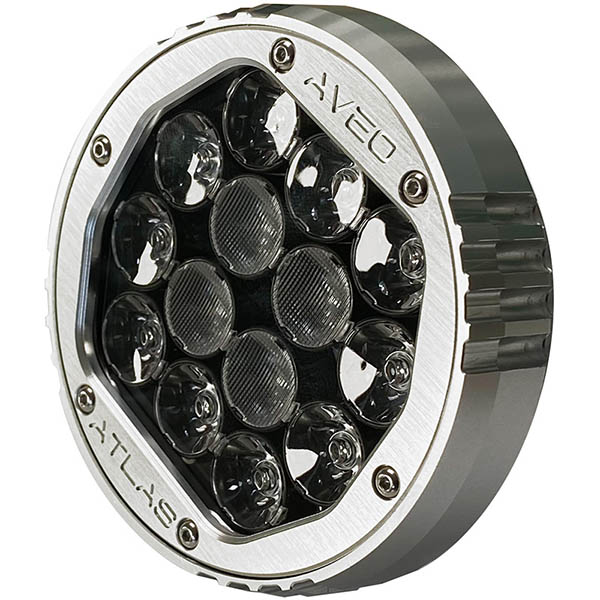

Atlas NXT™ is a high powered Landing and Taxi LED light used in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft.
|

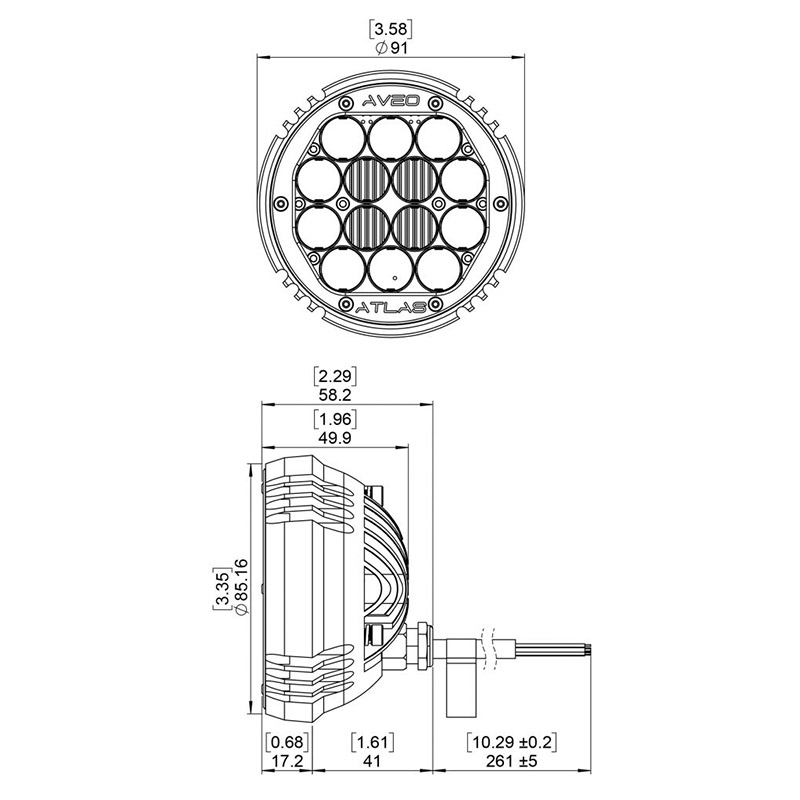

Dimensions (mm): | 91 mm x 49.9 mm |
---|---|
Dimensions (inches): | 3.58“ x 1.96“ |
Weight: AVE-AXTTLFW-D01 AVE-AXTTLFW-D02 AVE-AXTTLFW-D03 | 323 g / 0.71 lb 359 g / 0.79 lb 344 g / 0.76 lb |
Operating Voltage Range: | 9 – 36 V DC |
Input Current (Landing): | 2.5 A @14V 1.3 A @28V |
Input Current (Taxi): | 1 A @14V 0.55 A @28V |
Input Power (Landing): | 35 W @14V 36.4 W @28V |
Input Power (Taxi): | 14 W @14V 15.4 W @28V |
Ambient Temperature: | from -55°C to +85°C from -67°F to +185°F |
Transient Voltage: | 80 V max |
Over-Voltage Lockout: | 36 V DC, not less |
Landing Lens Angle: Taxi Lens: | 9° 12° x 30° |
Reverse Polarity Protection: | Yes |
Overheat Protection: | Yes (temperature dependent decrement of intensity, see note below) |
Waterproof, Dust-proof, Vibration-proof: | Yes |
Useful Life: | not less than 15,000 aircraft flight hours |
