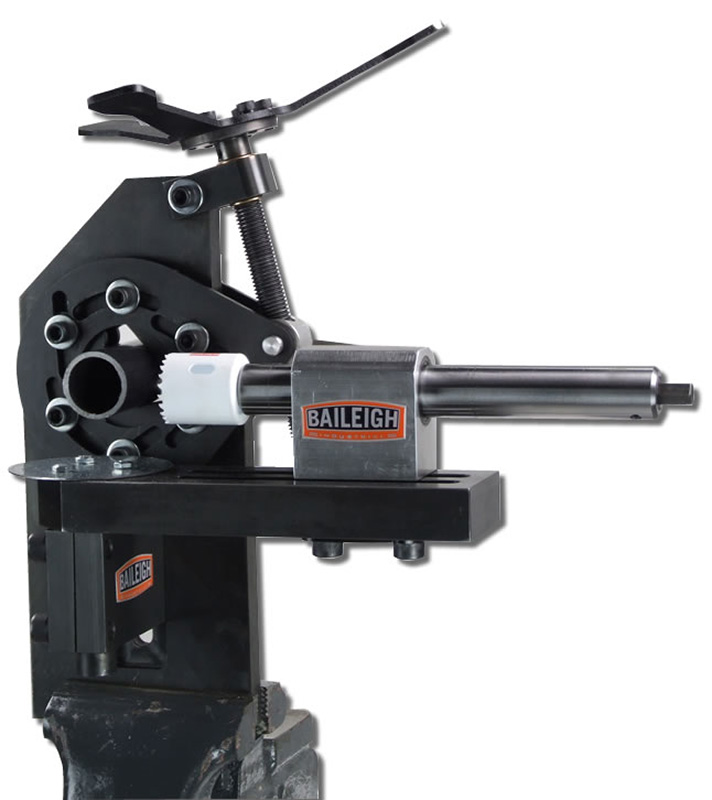

Baileigh Manual Hole Saw Notcher Tn-250

0 Reviews 1 Answered Question
$1243.00/Each
Quantity
Add to Wishlist
Part# 13-08981
MFR Model# 1008041

Overview

This is the most revolutionary hole saw pipe notcher on the market and is perfect for chassis, roll cages, and much more. The heart of this pipe notcher machine is the unique design of the self centering capture vise that allows the ability to clamp onto bent tubes in any direction. This is the only hole saw tubing notcher that is always centered left to right and up and down.

This coping machine is constructed of heavy steel plate to reduce vibration, uses a 1-1/4” Thompson® shaft that rides in a sealed needle bearing for longevity of the machine and hole saw. The TN-250 tube notchers vise has a powerful screw with a built in hand wheel that opens and closes the unique six radial clamping jaws. This totally unique design to Baileigh tubing notchers easily allows for securely clamping and notching on a bend or straight of tubing.

The TN-250 pipe notcher can notch up to 2-1/2” OD and allows for steep angles as the hole saw can pivot up to 230 degrees making it the most versatile notching machine on the market. This tubing notcher can easily offset in seconds for off center notches and does not require crazy shims or spacers common on inferior models.

To further compliment the experience of this revolutionary pipe notcher the Thompson® shaft has a replaceable hex insert for drill connection, that saves the main arbor shaft. A large degree plate is included with a very visible pointer for exact degree angles every time. This tube notcher has a fully adjustable axis to accommodate almost any notch combination considering the pivot moves left to right up to 230 degrees, there are two slotted mounting rails for almost any position of the bearing block, and finally we have the easily adjusted position for up and down.

All in all, Baileigh’s TN-250 tubing notcher offers the most revolutionary design, quality construction and function of any other vise or table mounted hole saw tube notcher on the market for a reasonable investment. For further information on this notching machine please call a Baileigh representative.

Specifications

  • Notch Capacity (OD): 1” – 2.5”
  • Angle Adjustment: 0-230 deg
  • Motor: N/A
  • Power Requirement: 1/2” Drill
  • Shipping Dimensions (L/W/H): 32” / 24” / 24”
  • Weight: 50 lbs

Videos

https://www.youtube.com/embed/9au7P7_Ni3I

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this Baleigh TN-250 accommodate Square tubing?

The TN-250 is specifically designed for round tubing. The 3 contact points in the center adjust to secure round tubing. It is not designed for flat surfaces, it may work but we cannot say for sure.
