Plate Nut Drill Jig

Select Version:
For #6 screwFor #8 screwFor #10 screw
Quantity
Add to Wishlist

Overview

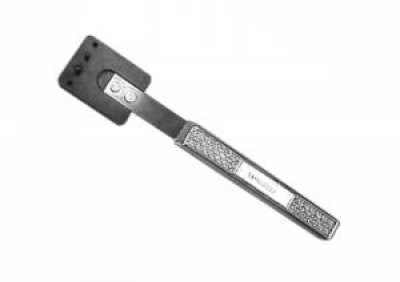

One piece heat treated tool steel jig. Use for accurate & fast drilling of rivet holes for plate nuts. Has flexible handle design. Use for both on lug (both holes on 1 side) & two lug (holes on both sides) style nut plates - K1000 & K1100 style nutplates.

  • #6 Plate Nut Drill Jig - hole size for #6 screw
  • #8 Plate Nut Drill Jig - hole size for #8 screw
  • #10 Plate Nut Drill Jig - hole size for #10 screw
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

a great tool to use when mounting nut plates, very accurate

James B Verified Purchase

Two-Lug Plate Nut Drill Jig 10-32

August 30, 2023

What a time saver. Very accurate.

Jeff W Verified Purchase

Two-Lug Plate Nut Drill Jig 6-32

September 22, 2022

This speeds up the process of installing not plates immensely. I should’ve bought one of these at the beginning of my build.

Robert S Verified Purchase

Two-Lug Plate Nut Drill Jig 6-32

September 16, 2022

Not absolutely necessary but very helpful none the less!

Elbert T Verified Purchase

Two-Lug Plate Nut Drill Jig 6-32

July 7, 2021

Fast prompt delivery. As advertised

David H
February 27, 2020

If youre installing many nut plates, these things are well worth it. Just drill the pilot hole and then use the jig to drill the rivet holes. No futzing with clamps, drill bits walking and misaligned holes. The tool part is made from hard carbon or spring steel so the drill will not wallow out the holes.

Mike S
May 30, 2019

Russ D Verified Purchase

Two-Lug Plate Nut Drill Jig 6-32

April 5, 2024

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this work on the MK nut plates (mini)?

No. These will not work with the mini nut plates.

Q: What’s the difference between the 12-03041 and the 12-04790?

P/N# 12-03041 is for a 6-32 thread and 12-04790 is for a 6-28 thread.

Q: what size hole needs to be drilled for #8 plate

The center pin is .163 inches.

Q: Will these work with metric nutplates? i need for M4,M5, and M6 size nutplates

These nut plate drill jigs have a spacing between the rivets of .688" (17.46mm) -- and the spacing between the rivet and the screw is .344" (8.73mm) (same on both sides of the screw). The # 1160 jig has a pilot pin for the screw hole and the pin diameter is .139" diameter (3.53mm)

Q: Which nut plate drill jig would I need for a 04-00162 nut plate? These are the MK1000-04 anchor nut.

We do not offer a drilling jig for a 4-40 sized anchor nut.
