Aurora Lcom

From $32.55 to $77.75
Aurora PN Heim Equivalent Price Buy
LCOM-3LS-3$47.60
Quantity
LCOM-4LS-4$32.55
Quantity
LCOM-5LS-5$65.75
Quantity
LCOM-6LS-6$46.95
Quantity
LCOM-7LS-7$77.75
Quantity
LCOM-8LS-8$43.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

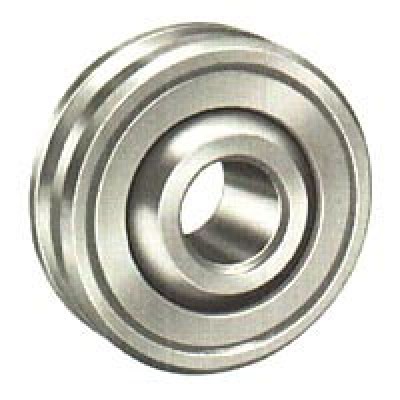

LCOM Series Large Size Spherical Bearings, (Ptfe Liners Available)

Outer Member - Carbon steel, protective coated for corrosion resistance.
Race - Carbon steel, inside diameter protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Ptfe Liners available upon request. Specify by adding suffix "T". Ex.: COM-M8T. (Ptfe Lined spherical bearings have no lubrication holes or groove in race outside diameter.)

PN

B - Ball Bore

D - OD

H - Race Width

W - Ball Width

Ball Dia.

A - Misalignment Angle

Radial Static Limit Load Capacity

LCOM-3

.1900 in

.6250 in

.187 in

.281 in

.406 in

16 º

3037 lb

LCOM-4

.2500 in

.7500 in

.281 in

.375 in

.500 in

14 º

5620 lb

LCOM-5

.3125 in

.8750 in

.313 in

.437 in

.625 in

14 º

7825 lb

LCOM-6

.3750 in

1.0000 in

.375 in

.500 in

.719 in

12 º

10785 lb

LCOM-7

.4375 in

1.1875 in

.437 in

.562 in

.812 in

11 º

14194 lb

LCOM-8

.5000 in

1.3125 in

.531 in

.687 in

.937 in

12 º

19902 lb

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

perfect little bearing i tracked down thru Aurora Bearing and it all landed back at Irwin Intl.

John H Verified Purchase

Lcom-3 Aurora Bearing

November 15, 2023
