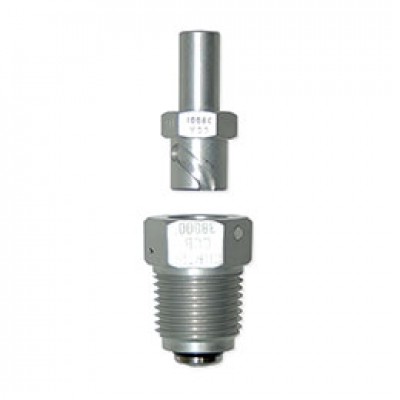

Curtis CCB-38000 Lycoming Low Profile Oil Drain Valve

$181.75/Each
Quantity
Add to Wishlist
Part# 05-15400
MFR Model# CCB-38000

Overview

FAA PMA Approved low profile aluminum oil drain valve for Lycoming engines. Designed to fit in applications where there would be an interference from landing gear operations, hoses, and other objects preventing the use of an oil Drain valve and operation of draining oil. These components are anodized for corrosion protection. This valve does not include hose & clamps.

Application: Lycoming

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 style port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.

Features

    Drain Flow Specifications
  • 8 Quarts
  • Oil Temp 140F
  • Drain Time: 5 Min 10 Sec

Specifications

  • FAA & PMA APPROVED
  • Aluminum Anodized
  • Thread Size: 1/2 NPT
  • Length: .789 Inch
  • Action: Spiral, Lock Open
  • Includes CCA-38001 Activation Tool
  • Anti-Seize compound required on threads for installation
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I had to mill out the grooves the drain plunger uses to twist and lock in drain position. As received from retailer the grooves would not allow plunger to lock in open position. Additionally, this valve is not as low profile as it could be. With all little design thought it could be reduced in size (bulk) and lowered in profile.

Gary H
May 10, 2019
