Piper Aircraft Front Mounted Door Seal P301-1

$226.95/Each
Quantity
Add to Wishlist
Part# 05-03628
MFR Model# ADS-P301-1

Overview

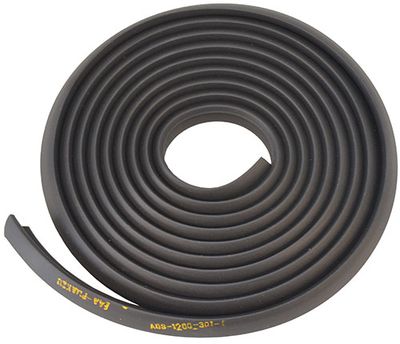

Piper Aircraft Front Mounted Door Seal P301-1.

Nearly a year of development and testing went into creating this revolutionary new Entry Door Seal for aircraft. Custom extruded from a special hybrid rubber compound, the new seal is superior to any seal on the market.
The thick leg of the P301-1 is just under 1/4" thick. The thin leg is tapered.

Application Chart

Aircraft Model Aircraft S/N
PA28-140 28-20002 thru 28-7625029
PA28-150, PA28-160, PA28-180 28-1 thru 28-7505260
PA28-151 28-7415001 thru 28-7615001
PA28-235 28-10003 thru 28-7610020
PA28R-180, PA28R-200 28R-20005 thru 28R-7635017
PA32-260 32-1 thru 32-76300001
PA32-300 32-40000 thru 32-764029
PA32R-300 32R-7680001 thru 32R-7680013
PA34-200 34-7250001 thru 34-7670063

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Aldrich A Verified Purchase

K2U Piper Front Door Entry Seal 28 32 34 Thru 1975

June 21, 2024

Aldrich A Verified Purchase

K2U Piper Front Door Entry Seal 28 32 34 Thru 1975

June 21, 2024

Easy to install and work as described.

Dru P Verified Purchase

K2U Piper Front Door Entry Seal 28 32 34 Thru 1975

July 23, 2021

Works Great on PA28s. A little on the pricey side, but a very worthwhile upgrade. Be sure a install new clevis pins and eyebolts and ensure the door is fitting correctly Prior to new seal installation. Door will be snug at first, but will eventually Break In really quieting down the cabin, as well as preventing water intrusion. (4 out of 5 starts for price)

Westwood A
March 8, 2018

Issam A Verified Purchase

K2U Piper Front Door Entry Seal 28 32 34 Thru 1975

September 18, 2024

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am going to instal new door seal 05-03628. 1) Is glue / adhesive included with seal or is it self stick? 2) If I need to buy glue separately, what type is recommended?

We have added the installation instructions to the web page in the "Documents" tab which should help clear up the install procedure. 1) You will need to use adhesive during installation, it is NOT self stick. 2) The install instructions recommend using 3M EC1300L or 3M Super Weather and Gasket Adhesive 08001 (yellow or black).

Q: Can you show a little more transparency with your photo. The photo does not show the seal. It is blurry.

We have updated the photography to show a detailed view of the seal itself.
