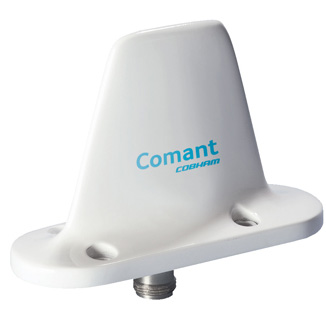

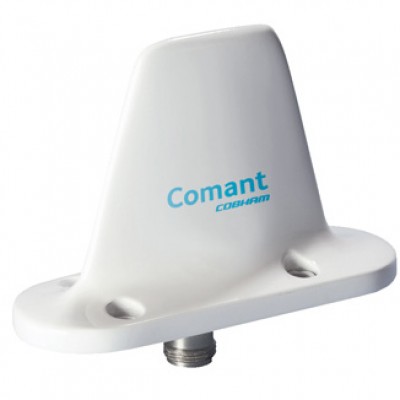

Comant Ci 310-22 Radiophone Antenna

$1085.00/Each
Quantity
Add to Wishlist
Part# 11-06846
MFR Model# CI-310-22

Overview

Frequencies Covered
806-960 & 1030-1090 MHz

L Band / UHF blade antenna designed for high performance aircraft. Low profile, light weight antenna and is packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents. Features vertical/omnidirectional pattern, wide band/high efficiency electrical performance and DC grounding for lightning protection.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

Electrical
Frequency
806-960 MHz & 1030-1090 MHz
VSWR
1.75:1 @ 806 to 960 MHz
1.5:1 @1030 to 1090 MHz
Polorization
Vertical
Radiation Pattern
Equivalent 1/4 Wave Stub
Impedance
50 Ohms
RF Power
100 Watts Average
Mechanical
Weight
0.32 lb
Height
3.25 inches
Material
High Density Polyurethane
Finish
White Polyurethane Enamel
Connector
TNC
Enviromental
Airspeed
600 Kts TAS @ 25,000 ft.
Temperature
-55 to 70 C
Atitude
50,000 ft
Federal Specifications
FAA TSO
C74c, Class 1A
Enviromental RTCA
DO-160C
