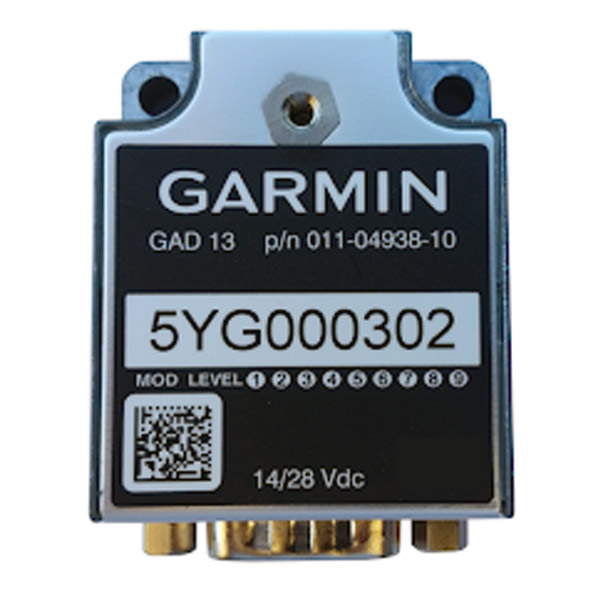

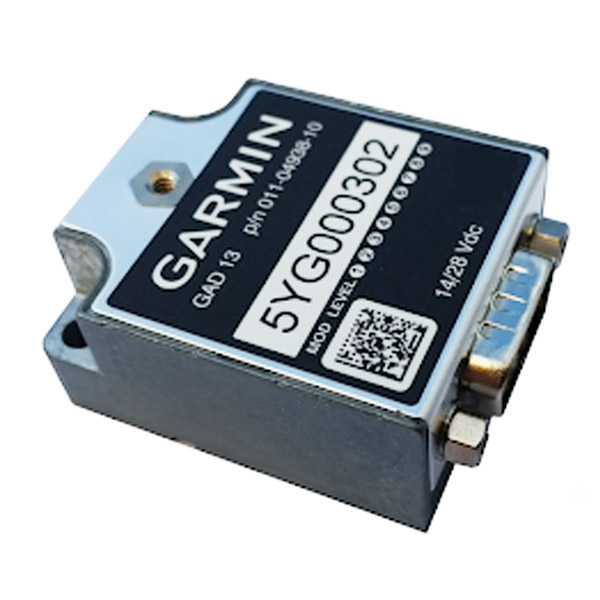

Garmin GAD 13 OAT Interface For G5

16 Reviews 19 Answered Questions
Select Unit
GAD 13 and GTP 59GAD 13 Unit OnlyConnector Kit
Quantity
Add to Wishlist

Overview

This OAT probe interface is FAA-PMA approved and can be added to the CAN bus for an existing single or dual G5 installation and enable the display of Outside Air Temperature (OAT), True Airspeed (TAS), and Winds Aloft. The GAD 13 interface is available as a bare unit for usage with a 3rd party OAT probe, or as a complete kit including a GTP 59 RTD precision OAT probe and connector kit.

Reviews

Submit a Review

Use this to get OAT to your G5s for adjusted airspeeds.

Tango L Verified Purchase

Garmin GAD 13 And Gtp 59 Kit
February 2, 2023

This product was delivered on time and well packaged. A typical Garmin product that works as documented.

Richard N Verified Purchase

Garmin GAD 13 FAA-PMA Unit Only
January 2, 2023

Magaero L Verified Purchase

Garmin GAD 13 And Gtp 59 Kit
September 21, 2022

Christopher F Verified Purchase

Garmin GAD 13 Connector Kit
June 2, 2022

Christopher F Verified Purchase

Garmin GAD 13 FAA-PMA Unit Only
June 2, 2022

Looks great c a nt wait to install

Kevin W Verified Purchase

Garmin GAD 13 FAA-PMA Unit Only
January 5, 2022

Looks great cant wait to install

Kevin W Verified Purchase

Garmin GAD 13 Connector Kit
January 5, 2022

I installed this with the Dayton temp probe in my RV6 that was equipped with dual G5s and the Garmin magnetometer and well worth the effort. Having instantaneous wind data alone is worth the investment. Density altitude is a added bonus!

Douglas M
February 7, 2021

This thing does zactly what they said it would. Git you one, youll be happy ! Better un ice cold beer on a hot afternoon.

Joe C
September 8, 2020

Fairly easy to install unit and probe Once installed and configured Worked like a charm Well worth the money for the extra info now displayed on the two (2) G-5 units Highly recommend

Fred C
July 6, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What comes with the GAD 13 ? What comes with the CAD 13 and GTP 59? What do I have to have to work with 2 G5s?

The GAD13 comes as the unit only. The GAD 13 / GTP 59 comes as a complete kit with the OAT probe and connector kit. You will need the complete kit. The OAT probe can be added to the CAN bus for the dual G5s.

Q: Is the GAD 13 for certified aircraft?

Yes, the GAD 13 is FAA PMA approved.

Q: The install manual says either Garmin probe or other OAT probes, would Davtron 655 work for this?

Per the manual that probe is not listed as an approved OAT probe. at the moment only the GTP 59 and C307PS.

Q: Will the G5 display Density Altitude in a certified aircraft with the GAD13?

No, The G5 will only display Density Altitude with the GAD 13 on the experimental version. The GAD 13 provides OAT and True Airspeed for certified aircraft.

Q: I want to know if you need to hook up any thing else from navigator gps along with these to the G5’s to get the wind temp and density altitude?

Per the manual, the GAD13 uses the can bus to communicate to your G5/Canbus system. The OAT is directly connected.

Q: I have a G5 in a stand alone configuration (Not connected to a navigator) as an attitude indicator. Do I need anything else in addition to the GAD 13 to get winds? I keep getting conflicting answers. I would think I need a GMU 11 or some other source for true heading, but the overview doesnt say that you need anything else.

With a standalone G5, the GMU 11 will be needed for the winds function to work properly as it needs to know which direction.

Q: What is the approximative weight of GAD13+GTP59? How long is GTP59 cable?

Per the manual, the GAD13 is 0.24 lbs the GTP59 has a weight of 0.3 lbs and has a 10 foot lead.

Q: Will the GAD 13 interface with the OAT probe used by the EI Carb/OAT?

The GAD 13 is available as a bare unit for usage with a 3rd party OAT, or as a complete kit including a GTP 59 RTD OAT probe and connector kit.

Q: Does the GAD13 Unit Only include the connector kit?

No, the unit only does not include the connector kit. However, the GAD 13 and GTP 59 kit (part # 11-17436) includes the connector kit.

Q: Will this kit provide winds on the G5 in a certified aircraft?

This OAT probe interface is FAA-PMA approved and can be added to the CAN bus for an existing single or dual G5 installation and enable the display of Outside Air Temperature (OAT), True Airspeed (TAS), and Winds Aloft.
