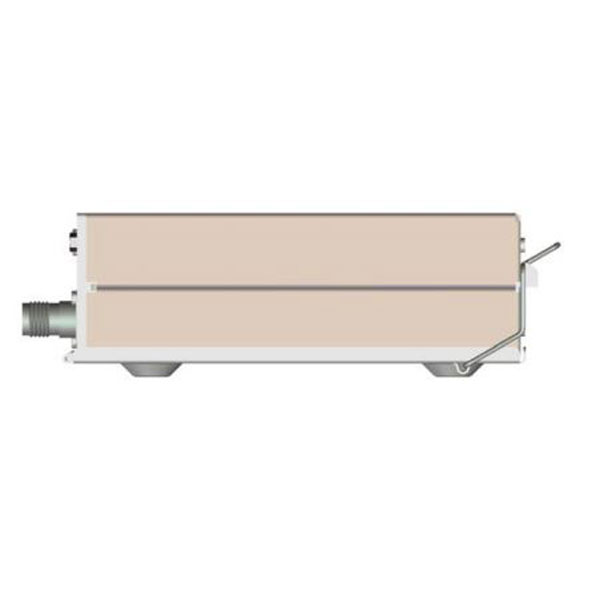

Trig TT21 Remote Transponder FAA TSO

$2861.00/Each
Quantity
Add to Wishlist
Part# 11-16847
MFR Model# 00565-00-01

Overview

The Trig TT21 transponder is uniquely useful to HXr users because it is able interface with the EFIS remotely, eliminating the need for a separate control head on the instrument panel. This supplement is designed to help you connect the transponder to the HXr display unit and program it to allow optimal performance of both units.(Head Unit, not included)

Features

The interface between this transponder and the HXr allows for:

  • Remote mounting, saving space on the panel and providing a clean, integrated design
  • Certified Mode S with 1090-ES/ADS-B Out Support
  • Available as Class 1, 250-watt output (TT22) or Class 2, 130-watt output (TT21)
  • Specifications

    Specification TT21
    Type Transponder Class 1 Mode S level 2elsADS-B Class B0
    Certification ETSO C88A, C112C, C166A
    TTSO C88b, C112c, C166b, approved for IFR and VFR flight
    Compliance ED-73C, DO-160F, DO-178B Level B,
    DO-254 Level C, DO-260B, DO-181D
    Supply Voltage (DC) 9-33 V
    Typical Current Consumption (at 14v) idle: 0.15A active: 0.28 A
    Nominal Transmitter Power 130 W at connector
    Operating Temperature for the transponder -40°C to +70°C
    for the controller -25°C to +70°C
    Cooling Requirement No fan required
    Weight 440g / 0.8 lbs
    Dimensions (mm) controller: H 44 x W 63 x L 54 mm
    transponder in tray: H 48 x W 68 x L 160 mm
    Dimensions (inches) controller: H 1.8 x W 2.4 x L 2.1 inches
    transponder in tray: H 1.8 x W 2.6 x L 6.2 inches
