PWM Dimmer - High Power 7A - Easy Fast-On Terminals

Voltage
12V24V
Quantity
Add to Wishlist

Overview

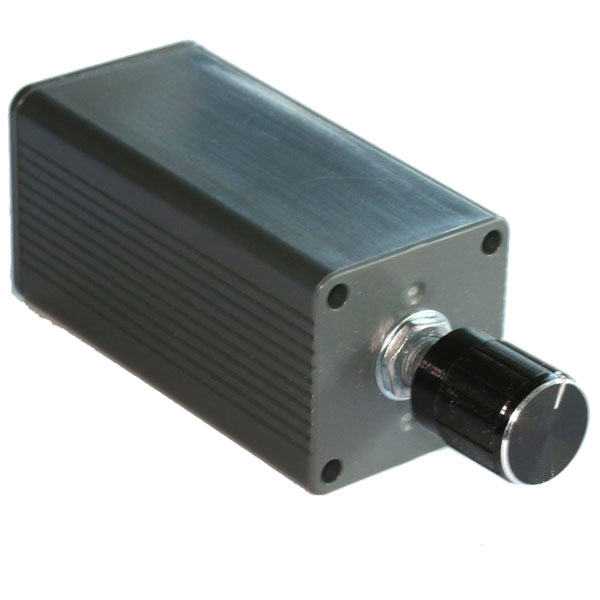

Extremely powerful PWM Dimmer - 7 Amps capacity. Perfect for controlling interior lighting inside your Aircraft.

Easy-to-install with smooth control rheostat. Easy-to-install, on/off switch on rheostat. Designed to control both LED and Incandescent lighting - 7 Amps per channel. 12V or 24V Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications. Advanced design includes over-current protection, reverse polarity protection and over-voltage protection.

Dimensions: 3" x 1.25" x 1.25" size

Specifications

  • To mount, drill a single 0.267" (17/64")(6.75mm) hole - insert rheostat shaft and secure with included nuts/washers.

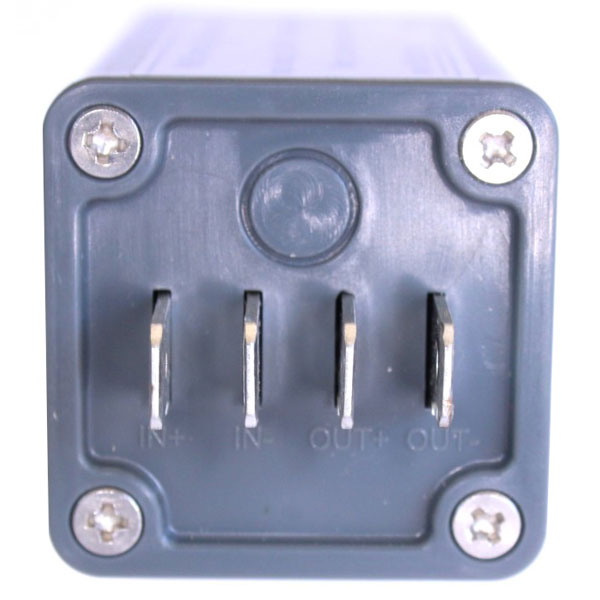

  • Rear case 0.250" push-on connections for: 12-14V or 24-28V Positive (+) Input
  • Input Ground (-). Output: Positive (+) and Ground (-).
  • High-quality push-on type knob.
  • Rheostat features 12mm of thread for mounting in thicker panels.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Work great with the led bar we installed.

Thomas S
January 31, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Installable In certified aircraft?

No, this is designed for installation in experimental aircraft only.

Q: What size terminals are on this?

.25 rear push on connectors.

Q: Is the 3" of length including the control knob, what distance is needed behind the panel for clearance?

That is from the knob to the end of the body.
