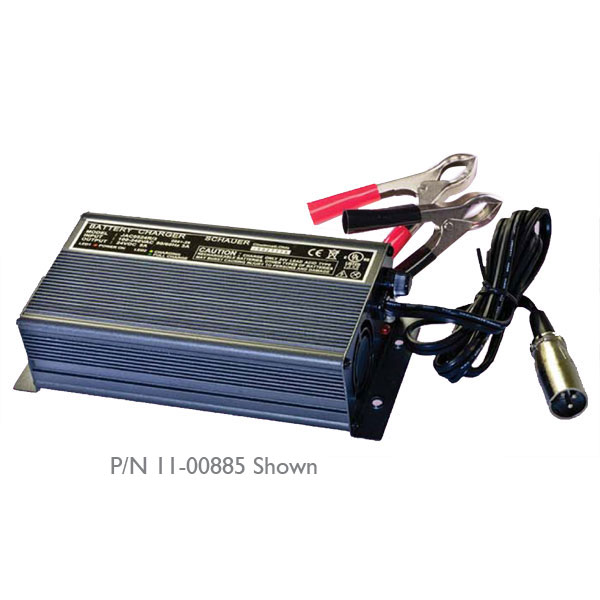

- Photo may represent series and not specific product
- SHARE
Schauer Battery Charger 12V/2Amp With Battery Clips
$86.75/Each
Part# 11-14732
MFR Model# JAC0212-C
MFR Model# JAC0212-C
Overview
|
Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode. Aluminum case. |
Features
- World–Wide Universal AC Input 90 – 260 volts, 50/60Hz.
- Charge control: modified constant current charge to a constant finishing voltage then to a float standby.
- Current limiting.
- Fully automatic 3 stage charger can be left on the battery indefinitely.
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
- Not intended for use as a DC power supply.
- Full load at 2.1 volts per cell continuous - 100% duty cycle.
- Short circuit proof.
- Reverse polarity protection (except 2 amp model).
Specifications
- Amps: 2
- Volts: 12
- Dimensions: 4.6"W x 2.3"H x 1.4"D
- Weight: 1.2 lbs
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Is this charger safe for use on Gill and Concorde aviation batteries?
It is not approved by either battery manufacturer but it would charge both types of batteries.
