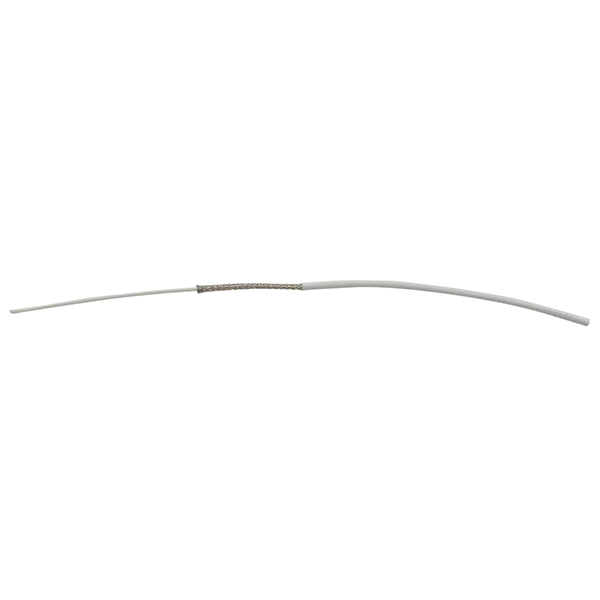

Shielded Wire MIL-C-27500 - White - Per Foot

122 Reviews 14 Answered Questions
From $1.50 to $51.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Mil Spec Conductor Wire Gauge Part Number Price / Ft Buy / Ft
M27500-24TG1T14124
11-04476
$1.50
Quantity
M27500-22TG1T14122
11-14422
$2.48
Quantity
M27500-20TG1T14120
11-14420
$2.51
Quantity
M27500-18TG1T14118
11-14418
$3.95
Quantity
M27500-16TG1T14116
11-14416
$3.55
Quantity
M27500-14TG1T14114
11-14414
$5.35
Quantity
M27500-12TG1T14112
11-14412
$11.50
Quantity
M27500-10TG1T14110
11-14410
$14.75
Quantity
M27500-08TE1T1418
11-14408
$11.85
Quantity
M27500-06TE1T1416
11-14406
$21.90
Quantity
M27500-24TG2T14224
11-04477
$2.87
Quantity
M27500-22TG2T14222
11-05650
$3.70
Quantity
M27500-20TG2T14220
11-18168
$3.35
Quantity
M27500-18TG2T14218
11-04474
$5.35
Quantity
M27500-16TG2T14216
11-04473
$7.50
Quantity
M27500-24TG3T14324
11-04478
$3.99
Quantity
M27500-22TG3T14322
11-05651
$3.35
Quantity
M27500-20TG3T14320
11-14585
$4.35
Quantity
M27500-18TG3T14318
11-04475
$6.95
Quantity
M27500-22TG4T14422
11-07773
$5.35
Quantity
M27500-20TG4T14420
11-18776
$5.70
Quantity
M27500-22TG5T14522
11-06580
$6.60
Quantity
M27500-22TG6T14622
11-07774
$3.35
Quantity
M27500-22TG8T14822
11-09782
$8.65
Quantity
M27500-22TG9T14922
11-12535
$8.50
Quantity
M27500-24TG10T141024
11-20087
$51.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

The wire is as advised and at requested length. Delivered at indicated timing.

Peter S Verified Purchase

Shielded 20GA White Wire M27500-20TG1T14
October 20, 2024

good

Safir D Verified Purchase

Shielded 22GA 3 Conductor White Wire M27500-22TG3T14
October 15, 2024

good

Safir D Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14
October 15, 2024

As listed....worked great!

Robert L Verified Purchase

Shielded 16GA 2 Conductor White Wire M27500-16TG2T14
October 14, 2024

Great Service - prompt service and shipping

Richard P Verified Purchase

Shielded 22GA 2 Conductor White Wire M27500-22TG2T14
October 5, 2024

Nice wire.

Steve T Verified Purchase

Shielded 24GA 3 Conductor White Wire M27500-24TG3T14
September 6, 2024

Rick C Verified Purchase

Shielded 20GA 2 Con White Wire M27500-20TG2T14
August 30, 2024

Randal S Verified Purchase

Shielded 20GA 3 Con White Wire M27500-20TG3T14
August 19, 2024

Pay attention when ordering wire I entered the exact size and number of conductors in the search The picture was correct when I went to order the box with the why was single conductor you had to scroll way down the list Now that I know it is easy. They sent an rma promptly

Kevin S Verified Purchase

Shielded 20GA White Wire M27500-20TG1T14
August 16, 2024

Just as I expected with no problems.

David L Verified Purchase

Shielded 24GA 3 Conductor White Wire M27500-24TG3T14
July 11, 2024

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color is the Shielded MIL-C-27500 wire listed on this page?

All the wire listed on this page is white.

Q: What tool do you recommend for stripping just the jacket of your 11-14418 shielded wire?

The only approved tool is part number 12-02031. Otherwise a razor blade is used.

Q: What is the diameter of the shielded #6 wire?

It is 5/16" diameter.

Q: What is the diameter of 20 awg shielded wire?

The diameter of shielded 20ga white wire M27500-20TG1T14 part # 11-14420 is 2mm.

Q: What is the outside diameter of MIL-C-27500, 16 gauge wire?

The nominal outside diameter of 16 ga wire under m27500-16tg1t14 is .092 inches.

Q: Is the 24 gauge 2 conductor a twisted pair wire?

M27500-24TG1T14 is a single conductor. Please look at Part# 11-04477.

Q: Is the M27500-18TG3T14 wire have two internal wires with a shield for three conductor or three internal wires with an external shield (4 conductors total)?

This has an external shield and has 3 individual wires inside.

Q: What is the outer diameter of the M27500-22TG6T14 cable?

.180 inch OD.

Q: What are the applications for shielded wire vs un-shielded wire?

The installation manual for the unit in question must always be consulted for the recommended wire that must be used.

Q: Is this tefzel wire?

No this is Extruded Ethylene Tetrafluoroethylene
