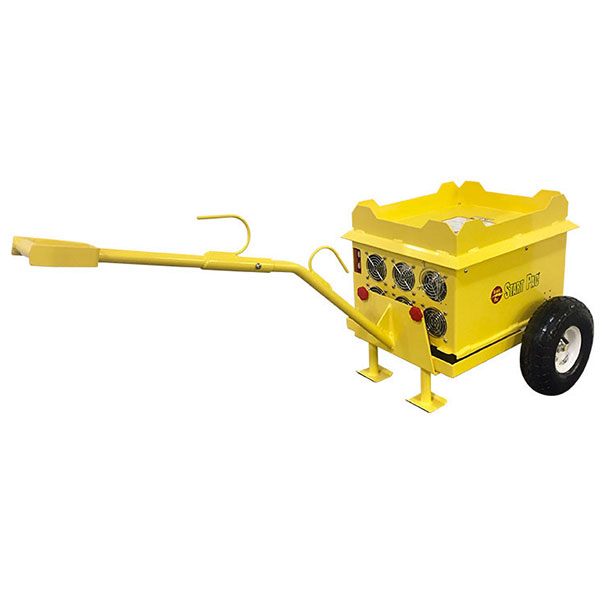

Start Pac® Model 53400 is a 28.5 Volt continuous DC power supply when plugged into 220Volt single-phase AC power. This unit will deliver full 400 amp DC output, but will not provide enough current for engine starting. Therefore this unit is designed for maintenance and to power up various functions such as inverters, avionics, GPS, and air conditioning.
Note: This unit is NOT designed for engine starting or battery charging. |
Maximum Continuous Current output | 400 A |
---|---|
DC voltage output | 28 VDC |
AC voltage input | 180 - 240 VAC |
AC current input at maximum DC power output | 53 A @220VAC |
Phase | Single |
Forced air-cooling | Yes |
Over current protection | Yes |
Over voltage protection | Yes |
Over temperature protection | Yes |
Complete weight with aircraft cables | 119lbs / 54kg |
Dimensions Length x Width x Height | 50" x 23" x 23" (127 x 58 x 58 cm) |
