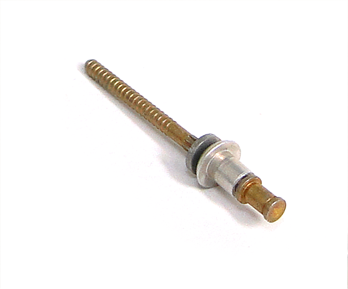

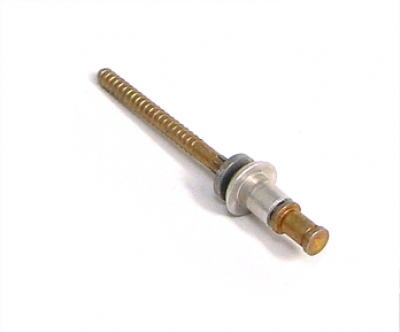

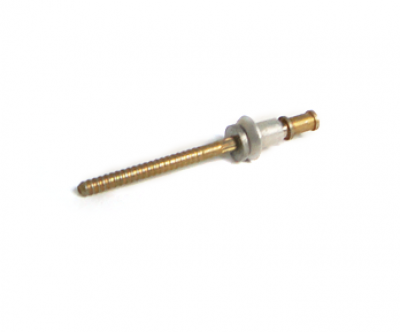

- Photo may represent series and not specific product
- SHARE
| PN | Dash | Dia. | Grip Range | Price | Price Per 100 | Buy |
|---|---|---|---|---|---|---|
CR3243-4-1 | 4-1 | .140 | .025-.062 | $1.26 | $101.00 | |
CR3243-4-2 | 4-2 | .140 | .063-.125 | $0.93 | $74.00 | |
CR3243-4-3 | 4-3 | .140 | .126-.187 | $1.14 | $91.00 | |
CR3243-4-4 | 4-4 | .140 | .188-.250 | $1.06 | $85.00 | |
CR3243-4-5 | 4-5 | .140 | .251-.312 | $1.09 | $87.00 | |
CR3243-4-6 | 4-6 | .140 | .313-.375 | $1.47 | $118.00 | |
CR3243-5-2 | 5-2 | .173 | .063-.125 | $1.20 | $96.00 | |
CR3243-5-3 | 5-3 | .173 | .126-.187 | $1.36 | $109.00 | |
CR3243-5-4 | 5-4 | .173 | .188-.250 | $1.11 | $89.00 | |
CR3243-5-5 | 5-5 | .173 | .251-.312 | $1.50 | $120.00 | |
CR3243-5-6 | 5-6 | .173 | .313-.375 | $1.65 | $132.00 | |
CR3243-6-6 | 6-6 | .187 | .313-.375 | $4.35 |
Overview
|
Due to the large bulbed blind head, similar to a solid rivet, the Cherrylock and CherryMax rivets are especially suited for double dimpled or high vibration applications. They can be used as replacements for some solid rivets and are excellent for use in fiberglass or composites as the rivet spreads in a way that prevents crazing or cracking of the material. NOTE: CR3212 and CR3213 are nominal diameters. CR3242 and CR3243 are oversized diameters and measure 1/64" more than listed diameter. SUBJECT TO PRICE AND AVAILABILITY OF CHERRY BRAND RIVETS. EQUIVALANT RIVETS MAY BE FURNISHED. Install with the G-27 Hand Gun See Also: CherryMax Grip Gauge |
