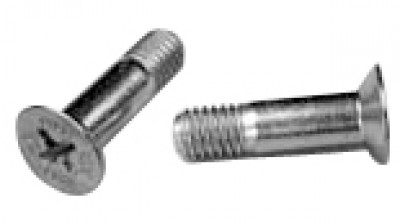

NAS 1202/1203 Flush Head Screws

From $0.20 to $0.74

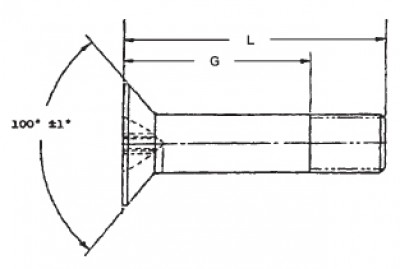

Thread Grip Length NAS No. Part No. Price Buy
8-32.125.401NAS1202-2
04-00671
$0.25
Quantity
8-32.188.464NAS1202-3
04-00672
$0.37
Quantity
8-32.250.526NAS1202-4
04-00673
$0.20
Quantity
8-32.312.588NAS1202-5
04-00674
$0.67
Quantity
8-32.375.651NAS1202-6
04-00675
$0.26
Quantity
10-32.125.401NAS1203-2
04-00676
$0.35
Quantity
10-32.188.464NAS1203-3
04-00677
$0.28
Quantity
10-32.250.526NAS1203-4
04-00678
$0.74
Quantity
10-32.312.588NAS1203-5
04-00679
$0.29
Quantity
10-32.375.651NAS1203-6
04-00680
$0.58
Quantity
10-32.438.714NAS1203-7
04-00681
$0.34
Quantity
10-32.500.776NAS1203-8
04-00682
$0.28
Quantity
Subtotal $0.00
Add to Wishlist

Overview

• Phillips 100° Flat Head
• Tensile – 160,000 – 180,000 PSI
• Alloy Steel Per MIL-S-6049
• Finish - Cadmium per QQ-P-416, Type II

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Fast service, excellent quality.

Jim L Verified Purchase

Bolt Flush Head NAS1203-6

October 3, 2021

As described

Kurt R
March 22, 2020

Perfect

Kurt R
March 22, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have an application that is calling out A286 CRES for the fastener material. Are these bolts (NAS1202) made from A286?

The NAS1202 series is made from alloy steel, not A286 cres. NAS1622E2 is made from A286 and has the same grip and length, but the shank diameter has looser tolerances (see below).

NAS1202 .1625-.1635 NAS1622 .1610-.1635
