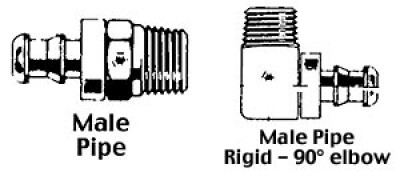

Weatherhead Barb-Tite Reusable

From $6.50 to $23.50
Part No. Description Hose I.D. Pipe Size Cut-off Factor Price Buy
10006B-104
3/81/41-1/2$6.50
Quantity
10006B-106
3/83/81-11/16$7.99
Quantity
10006B-C02
90° Pipe3/81/83/8$13.50
Quantity
10006B-C04
3/81/43/8$23.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Designed for use with hoses with maximum working pressure up to 250 PSI. Easy to assemble and disassemble.
<

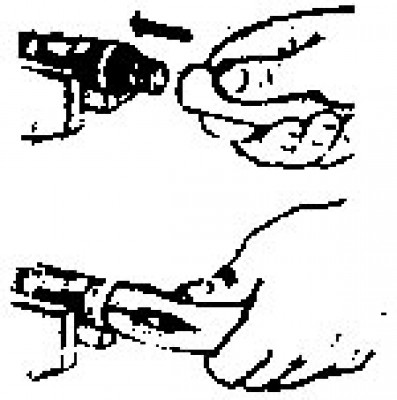

ASSEMBLY INSTRUCTIONS TO ASSEMBLE - Cut hose to correct length. To obtain correct length, subtract "Cut-Off Factor" for each end from overall length. Push hose on fitting until seated under protective cap. Lubricate hose and end for easy assembly.
TO DISASSEMBLE -Slit hose from protective cap to end of Barb- Tite insert. Bend hose and remove with quick jerk
