| Dash No. | Nominal Length |
Grip Length | Cad Plated Drilled | Cad Plated Undrilled |
|---|---|---|---|---|
| -6 | 27/32 | 1/16 | -- | $6.60 |
| -7 | 31/32 | 3/16 | $9.95 | $2.54 |
| -10 | 1-3/32 | 5/16 | -- | $5.70 |
| -11 | 1-7/32 | 7/16 | $3.35 | $3.35 |
| -12 | 1-11/32 | 9/16 | $6.99 | $5.35 |
| -13 | 1-15/32 | 11/16 | $13.50 | $3.35 |
| -14 | 1-19/32 | 13/16 | $5.85 | $5.99 |
| -15 | 1-23/32 | 15/16 | $6.70 | $5.99 |
| -16 | 1-27/32 | 1-1/16 | $6.70 | $5.35 |
| -17 | 1-31/32 | 1-3/16 | $6.50 | $5.35 |
| -20 | 2-3/32 | 1-5/16 | $8.50 | $6.70 |
| -21 | 2-7/32 | 1-7/16 | $8.60 | $3.80 |
| -22 | 2-11/32 | 1-9/16 | $5.99 | $4.35 |
| -23 | 2-15/32 | 1-11/16 | $7.60 | $6.70 |
| -24 | 2-19/32 | 1-13/16 | $8.50 | $8.50 |
| -25 | 2-23/32 | 1-15/16 | $7.50 | $6.85 |
| -26 | 2-27/32 | 2-1/16 | $8.60 | $4.50 |
| -27 | 2-31/32 | 2-3/16 | $8.50 | $5.35 |
| -30 | 3-3/32 | 2-5/16 | $8.50 | $4.35 |
| -31 | 3-7/32 | 2-7/16 | $13.50 | $6.70 |
| -32 | 3-11/32 | 2-9/16 | $5.75 | $5.35 |
| -33 | 3-15/32 | 2-11/16 | $6.75 | $5.40 |
| -34 | 3-19/32 | 2-13/16 | $17.75 | $5.60 |
| -35 | 3-23/32 | 2-15/16 | -- | $6.50 |
| -36 | 3-27/32 | 3-1/16 | $6.70 | $5.35 |
| -37 | 3-31/32 | 3-3/16 | $6.80 | $6.50 |
| -40 | 4-3/32 | 3-5/16 | $9.50 | $10.60 |
| -41 | 4-7/32 | 3-7/16 | $6.70 | $6.70 |
| -42 | 4-11/32 | 3-9/16 | $6.75 | -- |
| -43 | 4-15/32 | 3-11/16 | $8.50 | $9.95 |
| -44 | 4-19/32 | 3-13/16 | $8.50 | $8.50 |
| -45 | 4-23/32 | 3-15/16 | $13.55 | $7.50 |
| -47 | 4-31/32 | 4-3/16 | $12.50 | -- |
| -50 | 5-3/32 | 4-5/16 | $32.90 | $25.50 |
| -51 | 5-7/32 | 4-7/16 | -- | $29.99 |
| -52 | 5-11/32 | 4-9/16 | $31.99 | $23.75 |
| -53 | 5-15/32 | 4-11/16 | $32.90 | -- |
| -54 | 5-19/32 | 4-13/16 | -- | $26.65 |
| -55 | 5-23/32 | 4-15/16 | $27.60 | -- |
| -56 | 5-27/32 | 5-1/16 | $22.50 | $37.50 |
| -57 | 5-31/32 | 5-3/16 | $21.50 | $33.50 |
| -60 | 6-3/32 | 5-5/16 | $33.55 | -- |
Overview
|

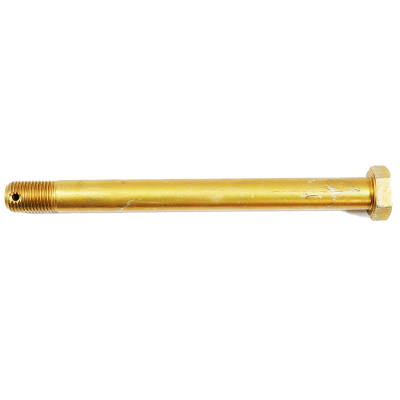

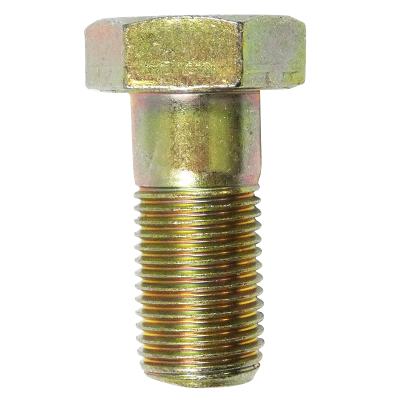

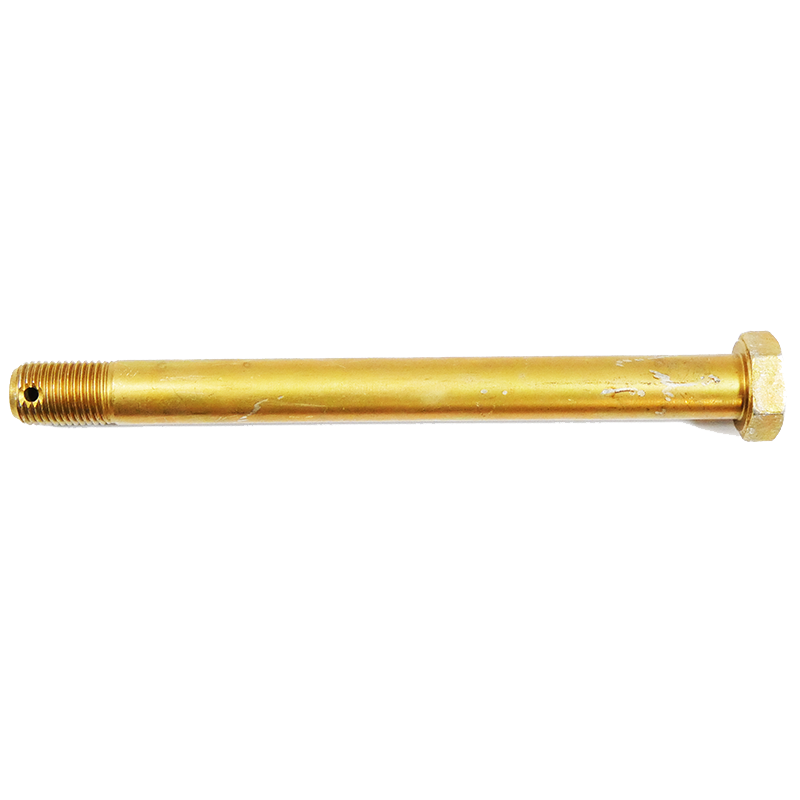

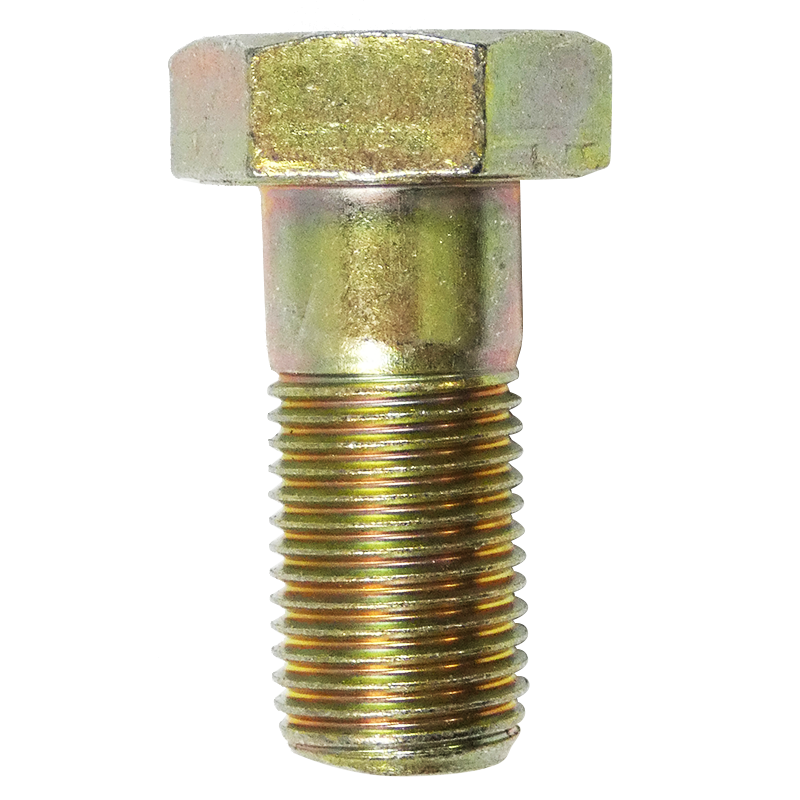

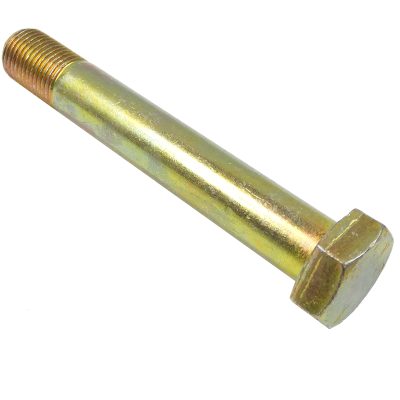

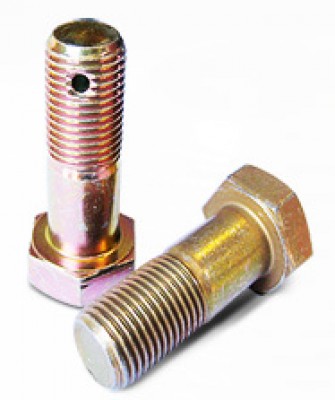

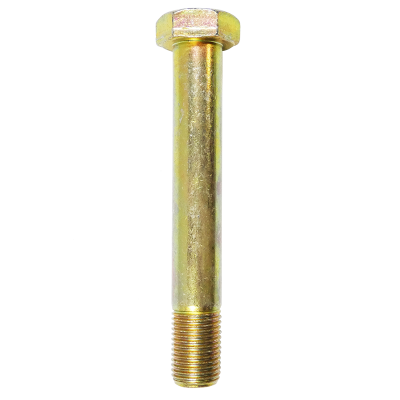

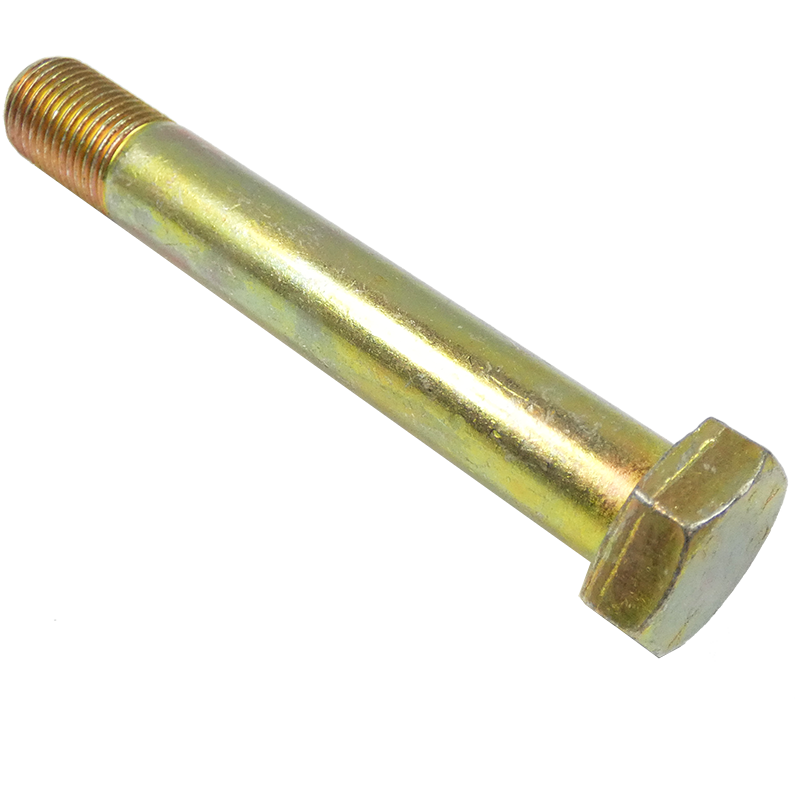

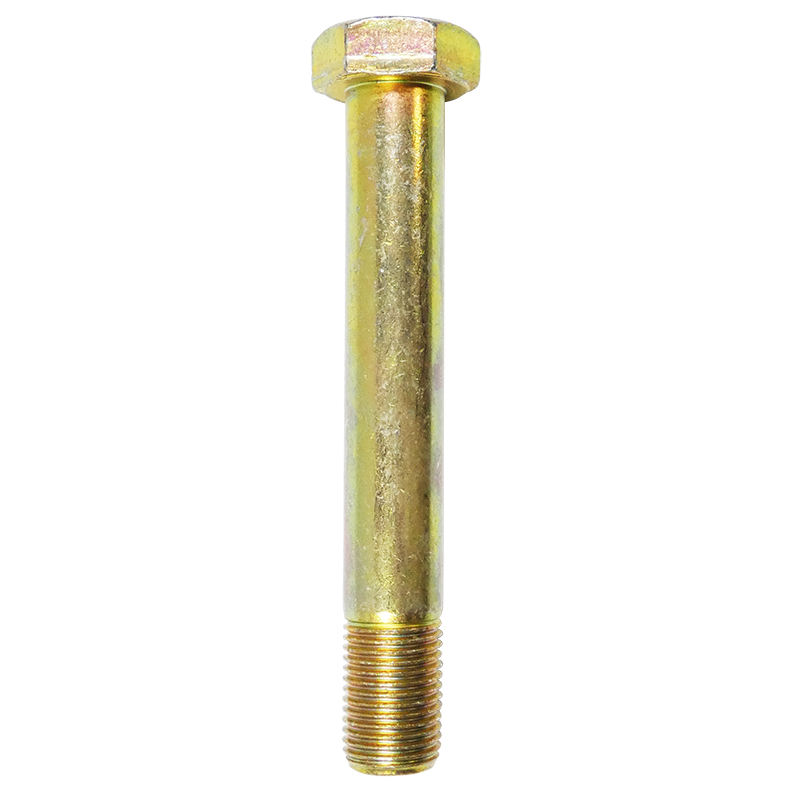

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are centerless ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, and with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after the dash number. For bolts with drilled head add letter "H" after the AN number. See illustrated examples. "C" represents Type 431 Stainless Steel (contains iron which is magnetic). The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN callout.
Note: Drilled bolts listed above are drilled shank only. To order drilled head only or both drilled head and shank bolts, please use our AN Bolt Selector by clicking the link below. Click here for the AN Bolt Selector |
Reference Chart
Reviews
Product was exactly what I needed to fix the problem.
Verified Purchase
Bolt Undrilled AN8-23A
ok
Verified Purchase
AN8-34A Undrilled Shank
Parts as ordered.
Verified Purchase
Bolt Undrilled AN8-51A
Perfect part.
Verified Purchase
Bolt Undrilled AN8-51A
Fast delivery
Verified Purchase
Bolt Undrilled AN8-24A
Good quality and fitment, as always.
Verified Purchase
Bolt Undrilled AN8-14A
Bolts are exactly as described. I haven’t used them yet. They will be used for the four link rear suspension on a drag racing car. This car makes about 3500 rear wheel HP.
Verified Purchase
Bolt Undrilled AN8-20A
The right bolt at the right price. When I discovered that a bolt was missing I was afraid I would have to go buy a $38 (yes that is the number that popped into my head) bolt. I bought more than I needed because they were very cost effective (not cheap) now I would’ve paid $38 for a bolt to keep my wing from falling off, but the fine folks at aircraft spruce/ Texas Aero saw to it that I didn’t have to.
Verified Purchase
Bolt Undrilled AN8-24A
As advertised
Verified Purchase
Bolt Undrilled AN8-51A
Verified Purchase
Bolt Undrilled AN8-17A
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are 1/2" diameter bolts. They are 1/2-20 bolts.
The dash number in the first column designates the part number. For example, the first bolt would be AN8-6, the second would AN8-7, etc.
