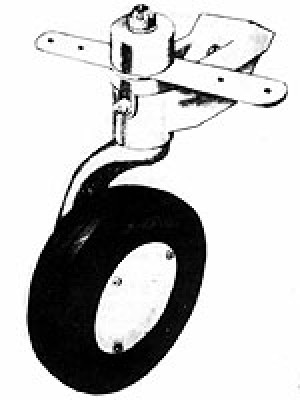

Lang Tailwheel D-501A
MFR Model# D-501A
Overview
|
The Lang Model D-501-A Tailwheel is full swivel, fully auto- matic and steerable. It's impossible to throw the Lang tail- wheel into full swivel unintentionally regardless of rough field conditions or cross winds. This tailwheel will not lock in any position except steerable, but releases easily when plane is pushed sideways or backwards by hand or when maneuvering plane on ground using brakes. The Lang tailwheel fits both 1-1/4" and 1-1/2" leaf springs. Drop forged, heat-treated 4130 steel fork of single arm type. A cast aluminum wheel is grease packed for 100 hrs service. The 6x2.00 solid rubber tire has interior wire reinforcement for added strength. Manufactured by ACS Products Co. under FAA-PMA. All replacement parts available. The Lang tailwheel is FAA-approved for installa- tion on many light aircraft including Aeronca 7AC, Piper J-3 and PA-12, Cessna 140, Luscombe and Taylorcraft. Comparable to Scott Model 2000. Wt. 6 Lbs. Made in USA |
Reviews
Great replacement for old cub or Champ Tailwheel
Verified Purchase
Lang Tailwheel # D-501A
So far loving it on the Champ - great improvement on my prior Maule wheel.
Verified Purchase
Lang Tailwheel # D-501A
Works very well, I like it much better than the Scott tailwheel it replaced on my Taylorcraft.
Verified Purchase
Lang Tailwheel # D-501A
Perfect for my ‘46 J-3 and just required a logbook entry from my A&P.
Verified Purchase
Lang Tailwheel # D-501A
I have been running the Lang D-501-A on my Luscombe for over 900 hours. In my opinion an excellent tailwheel, a great improvement over the Maule I ran originally and better than the Scott 2000 type. Only maintenance other than grease and tires is occasional replacement of cam washer and locking pin.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
They do not come with the chains and springs. I cannot provide part numbers for them, it would depend on application.
Yes, 06-00398 is a complete assembly with wheel and tire.
These tailwheels are manufactured in new condition.
.4993/.4998 diameter shaft.
