Description | Part Number | Price | Buy |
---|---|---|---|

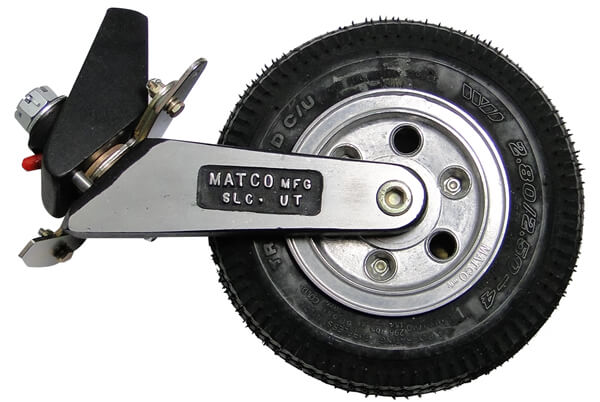

Matco 8" pneumatic wide tailwheel assy. Overall length of 11.20". Max fully splayed arms is 9.29" and overall height is 11.7", weight 7 lbs. | 06-01620 | $634.00 | |
Matco 8" pneumatic wide tailwheel assy. Overall length of 12.51". Max fully splayed arms is 9.29" and overall height is 15.7", weight 8 lbs. | 06-01361 | $678.00 |
T8 Tailwheel MATCO mfg produces an superior eight inch tail wheel for use with tail dragger aircraft which require a heavier duty tail wheel--the T-8. The T-8 tail wheel incorporates a geometric release mechanism that allows the wheel to caster after reaching a steered angle of 40 degrees (earlier release available with optional steering arms WHLT-03A). The WHLTW40EE wheel used on the WHLT-8 has a .625 precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. The arms and wings of the tail wheel fork assembly are composed of 4130 which is heat treated to a Rockwell 38-43 to ensure strength and are irridited to prevent corrosion. The tail wheel base and forks are cast and then black anodized to prevent corrosion as well. The wheel halves are die cast aluminum for light weight and superior strength. The T-8 features split rims for ease of mounting and dismounting its 2.80/2.50-4 tire and tube assembly. The tail wheel assembly is both steerable and full swiveling and provides easy installation with variant spring tension. This wheel has been designed to release with light spring tension and can accommodate either a 1.25 or 1.50 inch wide spring (Use part number WHLTWB-1 adapter for 1.75 inch wide springs). When a 1.50 inch spring is used, a .25 inch spacer should be used between the base and the spring. The assembly should be mounted on the flat spring so that the pivoting axle is as close to vertical as possible when the plane is loaded. All assembly bushings are made of oil impregnated brass so no lubrication is needed during the life of the tail wheel. In addition, the shaft has been redesigned to .625 for added strength and durability. Assembly Drawing Installation Drawing How the Geometric Release Works |
Nice sturdy construction, looking forward to many years flying with it.
MATCO PNEU TAILWHEEL ASSY
Looks good, not yet installed.
MATCO PNEU TAILWHEEL ASSY
Very nice tail wheel, put it on a kitfox 3.
Your company handles goods purchased by customers, Instant processing power, Accurate, fast and very satisfied.
Works great. Thanks
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, nothing else will be needed if the installed tail spring is 1-1/4 inch or 1-1/2 inch.
Yes, this has the smooth wide tire.
We would have to special order in from Matco. Please contact our sales department for current price and lead time.
