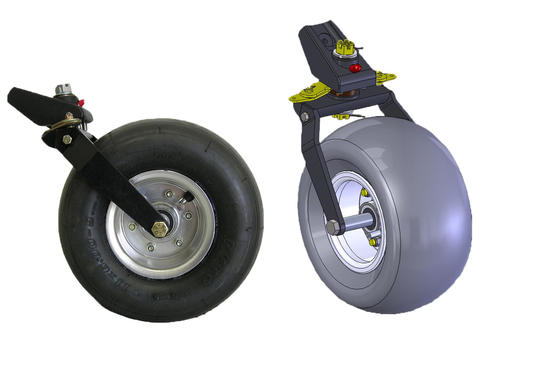

Dual Arm Tail Wheel Assemblies 11 Inch Pneumatic Tire
MFR Model# WHLT-11D
Overview
|
The T-11D tail wheel utilizes a dual fork configuration and incorporates a geometric release mechanism that allows the wheel to caster after reaching a steered angle of 40 degrees. The MH5N-S wheel used on the WHLT-11D has a .625 precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. The arms and wings of the tail wheel fork assembly are composed of 4130 which is heat treated to a Rockwell 38-43 to ensure strength and are irridited to prevent corrosion. The tail wheel base and forks are cast and then black anodized to prevent corrosion as well. The wheel halves are die cast aluminum for light weight and superior strength. The T-11D features split rims for ease of mounting and dismounting its 11x6-5 tubeless tire assembly. The tail wheel assembly is both steerable and full swiveling and provides easy installation with variant spring tension. This wheel has been designed to release with light spring tension and can accommodate either a 1.25 or 1.50 inch wide spring. When a 1.50 inch spring is used, a .25 inch spacer should be used between the base and the spring. The assembly should be mounted on the flat spring so that the pivoting axle is as close to vertical as possible when the plane is loaded. All assembly bushings are made of oil impregnated brass so no lubrication is needed during the life of the tail wheel. In addition, the shaft has been redesigned to .625 for added strength and durability. |
Specifications
- 11 inch pneumatic tire
- Overall length of 13.5 inches
- Maximum width of this tail wheel with fully splayed arms: 7 inches
- Overall height: 14 inches
- This cast aluminum tail wheel weighs 9.6 pounds
Documents
Reviews
Nice tail wheel, great for soft surfaces & off airport operations .
Verified Purchase
Matco Pneu Tailwheel Whlt-11D
Great product perfect fit on my Rans s-7 much softer off field landings
Verified Purchase
Matco Pneu Tailwheel Whlt-11D
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The tire is approx 11 inch OD and 6 inch width.
Yes that is correct per the Matco website.
