286-08 Carburetor Quick Kit

4 Reviews 2 Answered Questions
$984.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 07-00932
MFR Model# 286-08
Kit Part No.Our Part No.
286-0807-00932

Overview

Marvel Schebler "Quick Kits" are easy to use, and are designed to save you time and money. Quick Kits include not only the recommended replacement parts used in every overhaul, but the additional parts used by all fuel professionals to insure the job is done right.

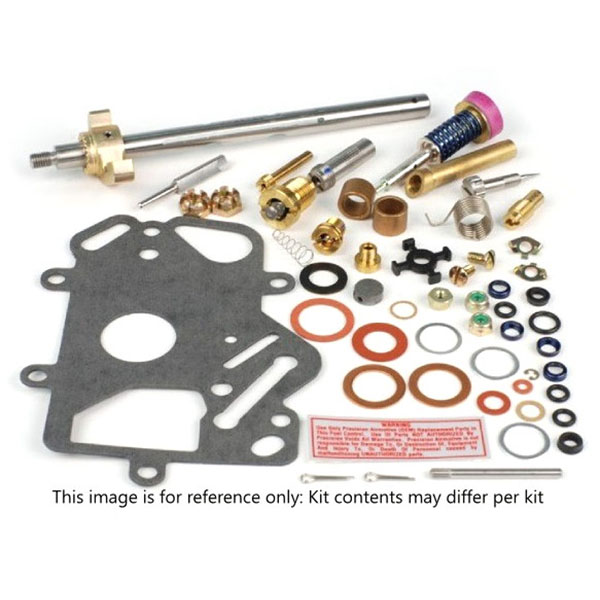

Kits include (where applicable): Throttle shaft lever, throttle shaft, throttle adjusting screw, throttle valve screws, inlet strainer screws, throttle body screws, mixture control lever screw, gasket kit, pump connection rod, throttle adjustment spring, throttle opening spring, idle adjustment spring, float lever shaft, pump stem, throttle shaft bushings, inlet strainer washer, pump stem retainer washer, mixture control lever washer, throttle body washers, throttle lever lock nut, float shaft cotter pin, throttle nut cotter pin, pump lever, pump plunger assembly and float valve seat assembly.

Reference Chart

FRANKLIN CARBURETORS
P/N "Quick kit" P/N
10-2971-P 286-02
10-3007 286-06
10-3063-2 286-06
10-3148-1 286-06
10-3479 286-06
10-5069 286-02
10-5093 286-00
CONTINENTAL CARBURETORS
10-2848 286-02
10-2948 286-02
10-3168 286-05
10-3237 286-03
10-3649-1 286-05
10-3759 286-05
10-3859 286-05
10-3859-1 286-05
10-3965 286-05
10-3965-1 286-05
10-4171 286-05
10-4191 286-05
10-4233 286-02
10-4240 286-02
10-4240-1 286-02
10-4252 286-02
10-4439 286-03
10-4457 286-02
10-4893 286-05
10-4893-1 286-05
10-4894 286-02
10-4894-1 286-02
10-4895 286-03
10-4895-1 286-03
10-5067 286-02
10-5082 286-02
10-5128 286-02
10-5192 286-05
10-5284 286-05

LYCOMING CARBURETORS
P/N "Quick kit" P/N
10-2827 286-07
10-2983 286-00
10-3103-1 286-00
10-3323 286-07
10-3346-1 286-02
10-3391-1 286-06
10-3565-1 286-02
10-3634 286-06
10-3678-12 286-04
10-3678-32 286-04
10-3729 286-02
10-3856 286-06

LYCOMING CARBURETORS cont...
P/N "Quick kit" P/N
10-3856-1 286-06
10-3856-11 286-06
10-3856-12 286-06
10-3878 286-08
10-4057 286-09
10-4057-1 286-09
10-4164 286-08
10-4164-1 286-07
10-4404 286-09
10-4404-1 286-09
10-4910 286-04
10-4910-1 286-04
10-4953 286-00
10-4978-1 286-01
10-5009 286-04
10-5009N 286-04
10-5034 286-07
10-5042 286-00
10-5045 286-10
10-5045-1 286-10
10-5050 286-01
10-5054 286-09
10-5062 286-04
10-5092 286-10
10-5126 286-01
10-5135 286-04
10-5142 286-01
10-5180 286-10
10-5189 286-10
10-5193 286-08
10-5199 286-00
10-5206 286-10
10-5206-1 286-10
10-5206-11 286-10
10-5210 286-10
10-5217 286-04
10-5219 286-11
10-5220-E 286-01
10-5220 286-01
10-5221 286-12
10-5224 286-11
10-5227 286-12
10-5230 286-11
10-5235 286-11
10-5253 286-11
10-5255 286-11
10-5257 286-01
10-5267 286-01
10-5282 286-11
10-5283 286-11
10-5288 286-08
10-6014 286-11
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Great service, very happy, and friendly.

Kevin Z
October 27, 2020

Had all the parts in it. Easy to install

Robinson
June 28, 2019

Aircraft Spruce always does a great job of shipping fast and getting it correct., even in these Covid 19 challenged times. The carburetor on our O320-E2D engine developed a slight bowl leak which apparently resulted in a too rich, rough running, failure to idle engine after 20 years and 1700 hours in service. Installation of this kit has cured the issues. Only reason for 4 stars is it’s a lot of money for a bunch of small parts that literally fit in the palm of one hand.

Reid L
September 10, 2020

I have a MA-4SPA 10-3878-12 carb and had to search the internet to find out which Quick Kit matched my carb. The Kelly Aerospace site gave a Quick Kit number that I found on this site. It would have been nice to have a parts list and picture with the kit so I could tell if I got all of the parts. The list and picture would be useful to order individual parts that got damaged during assembly like the pump stem packing in my case. Note that for this carb the pump and pump stem packing numbers were not up to date on the Kelly Aerospace site. Ill also mention that all of my carb problems turned out to be due to running the engine on the ground without a carb box or air cleaner in front of it, the engine ran well with the air cleaner installed and extremely rich without it.

James M
December 8, 2019

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What Gasket is required to mount carburetor?

The is a rebuild kit, we would need to know the model of carb and the engine to figure out the top mounting gasket.

Q: What are the part numbers included for the 286-04 CARB QUICK KIT? Specifically I am wondering if there is a jet included in this kit.

This comes with:
castle nut
cotter pin
float lever shaft
float valve assy
gaskets
pipe plug
pump connecting rod
pump lever
pump stem packing
screws
springs
throttle shaft assy
throttle shaft bushings
washers

No Jets are included.
