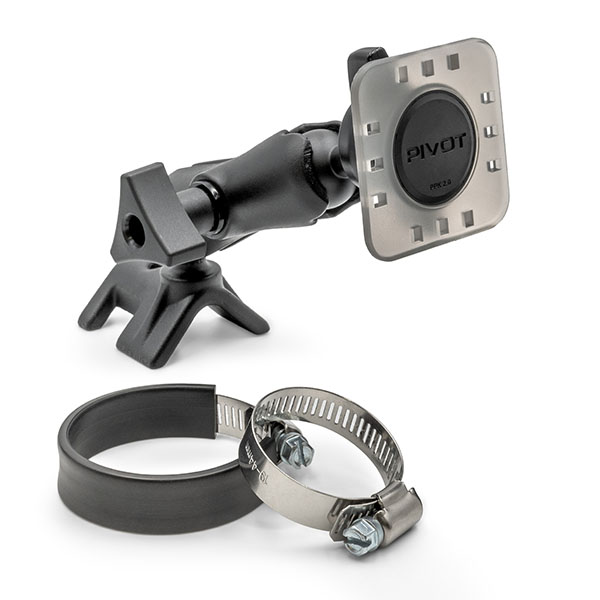

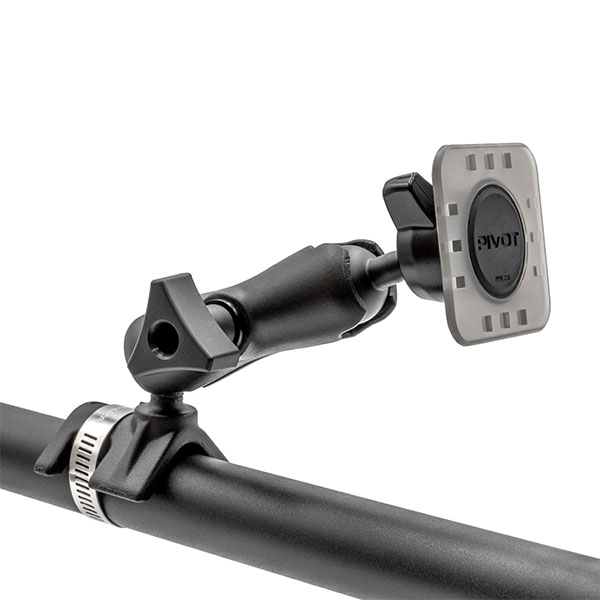

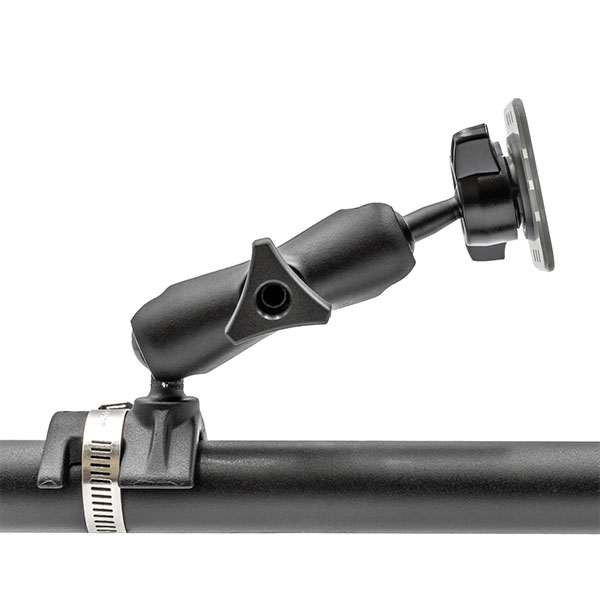

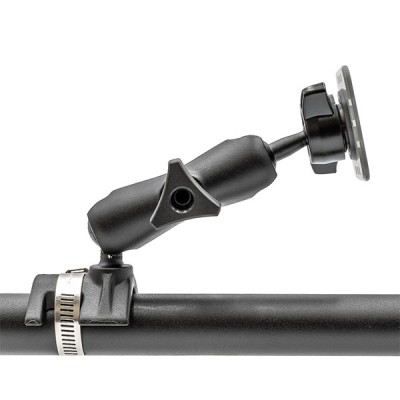

Flyboys Pivot Yoke Mount For Beechcraft/Bonanza - 1 To 2.1 Inch Hose Clamp
MFR Model# PM-YM-2
Overview
|
Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke.
Introducing the PIVOT Yoke Clamp Mount, an unbeatable yoke-mounting solution. It is available in two sizes to a wide range of aircraft. The Small Clamp fits aircraft with yoke rods between 1-2.1 inches in diameter, such as those found in Cessna aircraft. The Large Clamp fits aircraft with yoke rods between 2-3 inches in diameter, such as those found in the Beechcraft Bonanza and other popular aircraft. Once installed, it will not lose its grip, ensuring that your device remains exactly where you mounted it regardless of flight conditions. Marine-grade aluminum, high strength polycarbonate, and stainless-steel hardware ensures durability and reliability in the most demanding environments. |
Features
- Clamp Mounting Base: Secures yoke-mounted Electronic Flight Bags to compatible yoke rods with unshakable grip
- Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case any aircraft with a compatible yoke-rod
- PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case
Specifications
- Weight:
- Small Clamp Mount (complete assembly): 9.50 oz, 269.3 g
- Large Clamp Mount (complete assembly): 10.04 oz, 284.6 g
- Dimensions:
- Length: 6.75 in (171.5 mm)
- Width: 2.63 in (66.7 mm)
- Clamp Range:
- Small Clamp Mount: Cylindrical surfaces 1.0-2.1 in (25.4-53.3 mm) diameter
- Large Clamp Mount: Cylindrical surfaces 2.0-3.0 in (50.8-76.2 mm) diameter
- Materials:
- Upper Clamp Housing: Marine Grade Aluminum
- Worm-drive Strap Clamp: Stainless Steel
- Lower Strap: Rubber
- Mounting Arm and Mounting Plate: High Strength Polycarbonate and TPU
Compatibility
- Small Clamp: Aircraft Yoke Rods 1.0-2.1 inches (25.4-53.3 mm) in diameter
- Large Clamp: Yoke rods 2.0-3.0 inches (50.8-76.2 mm) in diameter
- Electronic Flight Bag (EFB) Cases: All PIVOT cases, past, present and future
Reviews
Excellent service and great part. You’d think it would block the view of panel, it will some on the ground, but once in the air, you have full view of the panel with ipad mini 6 attached in portrait mode.
