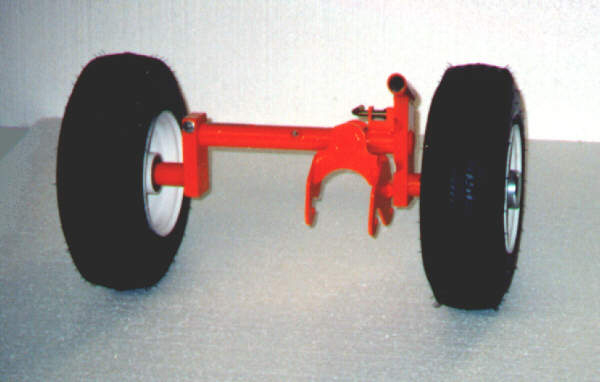

Brackett Bell 206A B Mechanical Civilian Wheels

0 Reviews 1 Answered Question
$3751.00/Each
Quantity
Add to Wishlist
Part# 13-16065
MFR Model# BDW-206JR

Overview

This Dual Wheel design reduces twisting by providing equal pressure on both sides of the tube. Therefore the stress and strain associated with single wheel systems is greatly reduced. A special cammed out area (see view A) locks the wheels onto the skid tube pins, eliminating the need to install any pins into your skid tube. The aircraft is raised approximately 3" as the wheels are rotated into position and automatically lock via a spring loaded "L-pin". To lower the helicopter, merely pull the pin and walk the bar down. Part number BDW-206JR consists of a ship set which is wheels for both sides of the helicopter and 1 ea. handle bar.

Specifications

  • App. Models: Bell and Agusta Bell Jet Ranger (Hi or Low skids)
  • Military model: TH-67 Creek
  • Skid tube dia. 3.00"
  • Attach points, 3 pins .50 dia.
  • Operation-Mechanical, 48" bar
  • Tire size 4.10 x 3.50-6 @ 85 psi.
  • Approximate skid lift 3"
  • Weight each side 36 lbs.
  • Dimensions 14 x 14 x 22
  • Color orange powder coated
  • Remove prior to flight

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the BRACKETT BELL 206A B MECHANICAL CIVILIAN WHEELS: Is the price for a set of two?

Yes, this will come with the left hand and right hand.
