No. | Status | Rotax Part Number | Description | Qty 447 | PN | Price | Buy |
---|---|---|---|---|---|---|---|
8 | 841-306 | COLLAR HEX. SCREW M8X65 SW 11 | 2 | 15-01167 | $4.90 | ||
12 | 945-765 | LOCK WASHER VHV 13 | 1 | 15-03371 | $3.35 | ||
13 | 941-051 | HEX. SCREW 1/2-2OUNFX3 | 1 | 15-03239 | $17.50 | ||
17 | 445-070 | RETAINING RING 62X2 | 1 | 15-00565 | $4.60 | ||
20 | 847-621 | DISTANCE RING 25,2/33/4,5 | 1 | 15-01345 | $26.99 | ||
21 | 939-020 | DISK SPRING B50 | 12 | 15-03152 | $5.85 | ||
22 | 958-771 | DOG HUB | 1 | 15-03588 | $164.75 | ||
23 | 944-469 | THRUST WASHER 20,5/30/0,8 | 2 | 15-03341 | $2.12 | ||
29 | 552-280 | GASKET RING 18,2/24/1 | 1 | 15-00572 | $2.55 |

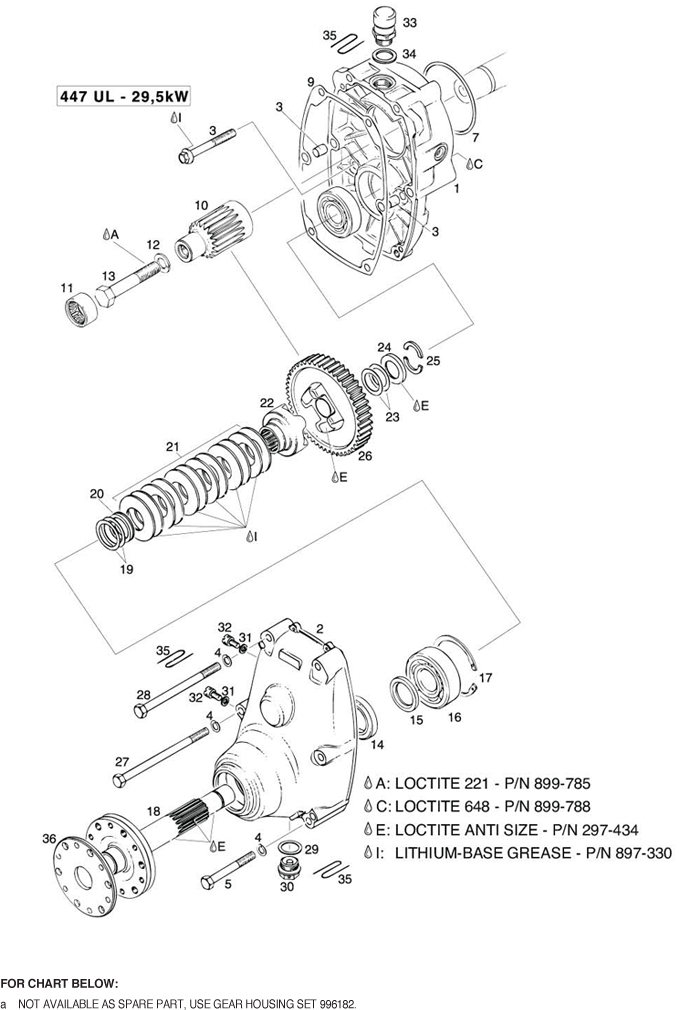

Rotax 447 UL engine reduction gearbox “b” : i=3,00 parts. Explanations of symbols and statements in part number charts:
|
No. | Status | Part No. | Description | 447 | 503 | 582 m90 | 582 m99 | 618 | Price |
1-5 | N.A. | GEAR HOUSING SET | 1a | 1 | 1 | 1 | NLA | ||
2 | N.A. | GEAR HOUSING | 1a | 1 | 1 | 1 | NLA | ||
3 | N.A. | GEAR COVER | 1a | 1 | 1 | 1 | NLA |
