Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 618UL /Rotax 618 Ul Engine Cylinder | Cylinder Head | Exhaust Valve Parts
Main Image

Rotax 618 Ul Engine Cylinder | Cylinder Head | Exhaust Valve Parts

0 Reviews 0 Answered Questions
From $0.41 to $297.95

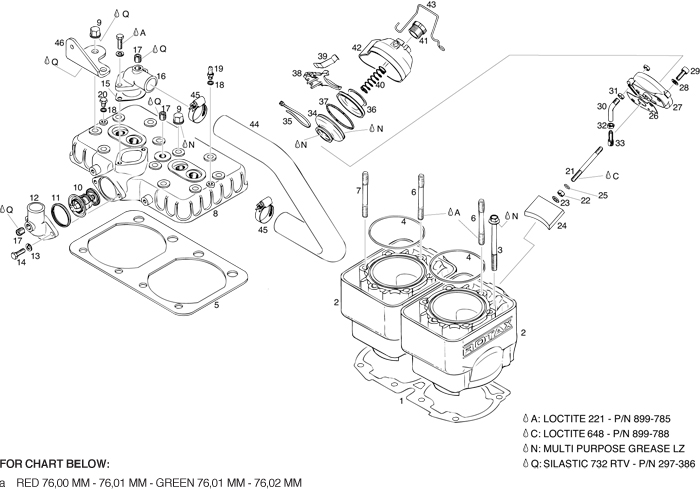

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Status Rotax Part Number Description Qty PN Price Buy
1931-181DOUBLE GASKET 0,5 MM1
15-03048
$31.50
Quantity
5850-560RUBBER GASKET1
15-01468
$59.85
Quantity
6N.A.841-881STUD M8X752
15-01220
$24.60
Quantity
7240-490STUD M8X84 10
15-00146
$10.50
Quantity
9842-471COLLAR CAP NUT M8 12
15-01258
$20.80
Quantity
20841-580HEX. SCREW M6X8 1
15-01194
$0.53
Quantity
22242-031HEX.NUT BM62
15-00204
$0.79
Quantity
24N.A.854-058EXHAUST VALVE 76 MM 2
15-01629
$297.95
Quantity
25230-260O-RING 6X3 2
15-00066
$3.95
Quantity
26230-256GASKET2
15-00065
$6.55
Quantity
28845-020SPRING WASHER B64
15-01286
$0.41
Quantity
29241-236ALLEN SCREW M6X164
15-00169
$0.63
Quantity
30N.A.268-935PIPE BEND2
15-00401
$46.95
Quantity
31942-810HEX. SCREW M7X0,75 4
15-03304
$1.90
Quantity
33241-440ADJUSTMENT SCREW M6X0,75 2
07-00406
$8.95
Quantity
35866-710CLAMP 142X2,5 MM 2
15-01869
$1.18
Quantity
37239-043HOSE SPRING 134-2,3-0,4-0,0 2
15-00098
$16.50
Quantity
39N.A.239-995SPRING2
15-00110
$14.70
Quantity
42N.A.210-335VALVE COVER2
15-00009
$54.75
Quantity
43N.A.239-035SPRING CLIP2
15-00096
$21.65
Quantity
46851-129INTAKE SILENCER BR1
15-01520
$38.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Rotax 618 ul engine cylinder, cylinder head, exhaust valve parts.

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
