Miniature Fuel Valves

From $64.75 to $70.75
Thread Length Weight Part Number Price Buy
1/4" NPT1-13/16"0.39 lbs
05-12627
$64.75
Quantity
3/8" NPT1-13/16"0.39 lbs
05-23330
$70.75
Quantity
1/2" NPT2-7/16"0.59 lbs
05-01026
$66.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

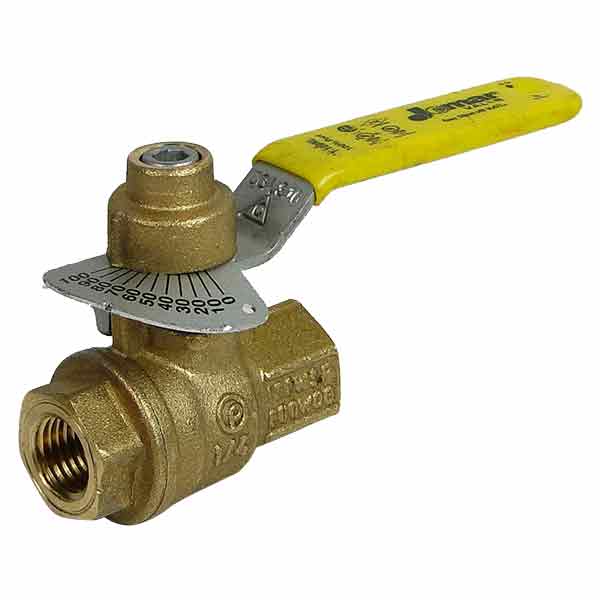

Forged brass 90º throw fuel valves with Fluoroelastomer seals. Available in 1/4", 3/8", or 1/2" female NPT. Light operating force makes them ideal for remote operation. Not FAA approved.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Item worked very well.

Larry E Verified Purchase

Mini Fuel Valve 3/8

September 21, 2022

Socrates K
May 27, 2018

This valve appears to be very well made. It has an extra feature not mentioned on the website. There is the ability to preset the opening to a selected angle from 0 degrees thru 90 degrees. This feature can also be removed easily if desired.

Dave R
November 23, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these miniature fuel valves compatible with av gas?

The manufacturer does not have any documentation for use with av gas, however, there are many Aircraft Spruce customers that use these in experimental aircraft with av gas.

Q: What is the weight of these valves? (ACS cat no 05-12627 & 05-23330)

Approximately 0.40 lbs each.

Q: What is the throw on these valves? 45 degrees, 90 degrees, or...?

90 degrees.

Q: What is the thread specification of PN 05-23330?

This fuel valve will have 3/8" NPT threads.

Q: The overview says the valve is made from forged brass.. what is the ball made of and what type seals are used?

The ball is made of brass and the seals are made of Fluoroelastomer.

Q: What sort of thread is the Mini fuel valve 1/4 05-12627? NPT NPTF BSP?

It is NPT.

Q: It looks like the 1/4 and 3/8 versions are the same dimensions. What are the openings thru the ball or the smallest ID on each one?

The only difference is the size of the female fittings, either 1/4 or 3/8 NPT. The ID on the ball is 3/8.
