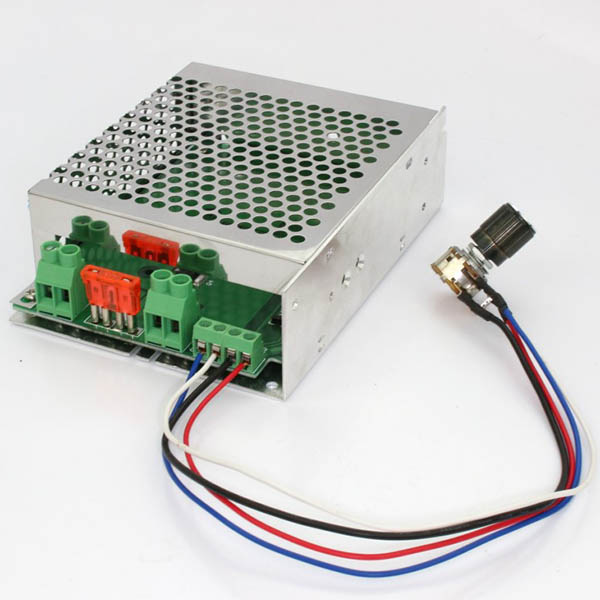

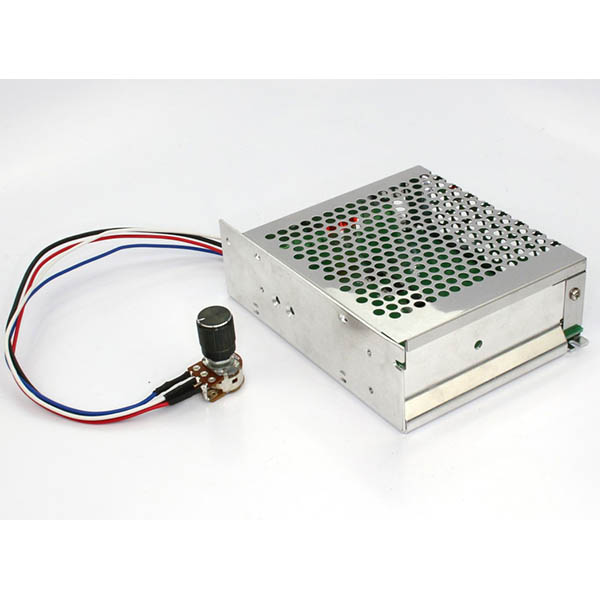

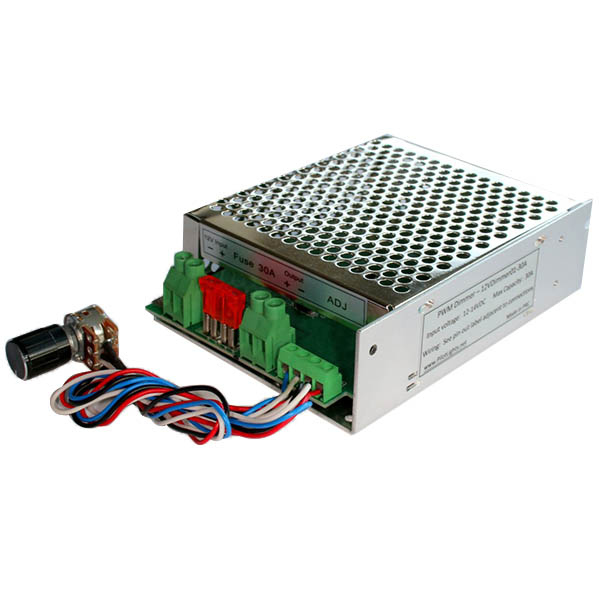

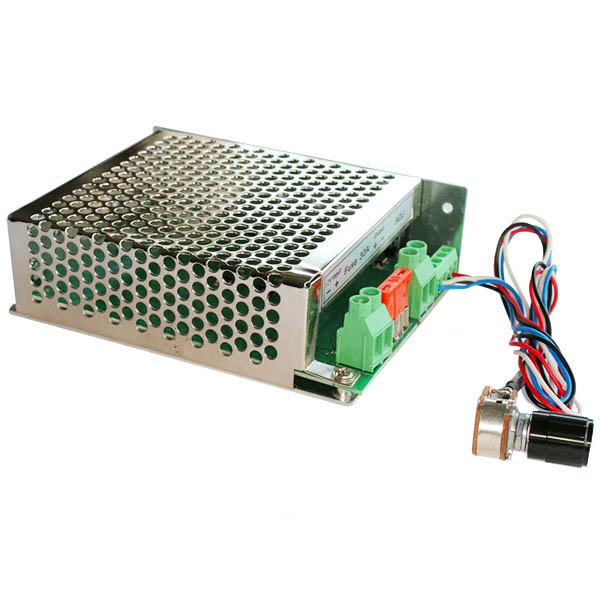

High Power 30 Amp (30A) PWM Dimmer

Select Voltage:
1224
Quantity
Add to Wishlist

Overview

Ultra High Power 30 Amp

12V (12-14V) or 24V (24-28V) PWM (Pulse Wave Modulation) Dimmer
  • Extremely powerful PWM Dimmer - 30 Amps capacity
  • Perfect for controlling large banks of LED lighting.
  • Easy-to-install, on/off switch on rheostat. Push-on knob included.
  • Designed to control both LED and Incandescent lighting - 30 Amps maximum
  • 12V or 24V Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications
  • Advanced design includes over-current protection, reverse polarity protection and over-voltage protection
  • On board ATM fuse for additional protection
  • Modular construction - Separate Rheostat and Dimmer PCB. Rheostat shaft is 0.267" (17/64")(6.75mm). Dimmer PCB (6" x 4" x 2.5") has 12 AWG screw-down input and output terminals.
  • Color-coded wiring for easy installation of the rheostat. 30cm of wire provided.
  • High-quality, large-format fluted type knob.
  • Rheostat features 12mm of thread for mounting in thicker panels.
