Overview
|

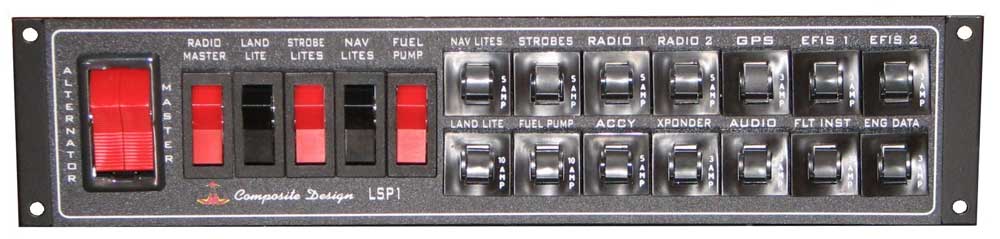

The Composite Design Light Sport Power Panel is a new product designed for LSA aircraft. Like the successful Standard and Mini Power Panels, it shares the same design philosophy, ruggedness and quality that all Composite Design panels have been known for since 1991. |
Specifications
- Dimensions: 2.375”H x 10.50”W x 7.00”D
- Weight: approx. 2.50 pounds
- Panel Specifications:
Capacity:17.5V max. at 60A (Main Buss)
Radio Buss: 15A cont.
Essential Buss: 10A cont. - Switches: Master
Alternator Field
Radio Master
Landing Light
Strobe Lights
Nav Lights
Fuel Pump - Circuit Breakers – Main Buss:
Landing Light
Strobes
Nav Lights
Fuel Pump
Engine Accessories - Circuit Breakers – Radio Buss:
Radio 1
Radio 2
Transponder
GPS
Audio - Circuit Breakers – Essential Buss:
EFIS 1
EFIS 2
Flight Inst
Engine Data - This Panel has Essential Buss back-up capability for use with the Composite Design Power Guard Module and back-up battery (part number 11-02044)
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this panel will work.
The dimensions of the unit are 2.375h x 10.50w x 7.00d. we unfortunately do not have panel cutout information for this part.
Yes, this will work on 12v and 14v systems.
This is made for a Light Sport Aircraft and holds no certification for certified aircraft. There maybe a chance for a 337 field approval from your mechanic.
