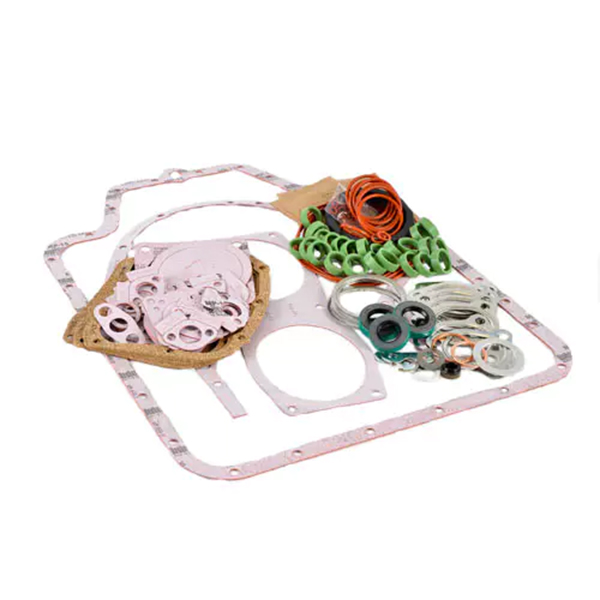

Superior SL13377 Gasket Set Major Overhaul

$368.00/Each
Part# 08-11593
MFR Model# SL13377

Overview

SL13377 for IO-540-C, N, T, V, W; O-540-J, L Wide Deck (Dual Magneto). Parallel Cylinder Head. Contains Exhaust Gaskets

FAA-PMA Approved
NOTE: Intake hoses and oil drain-back hoses must be ordered separately.

Documents

In The Box

Part in Set Qty Part Description OEM Part Number
MS29512-06 1 O-RING
MS29512-10 1 O-RING
MS16625-2081 1 RETAINING RING STD-2231
MS35769-21 1 CRUSH GASKET
MS35769-31 1 GASKET
SL8313 3 GASKET 8313
SL60096 1 GASKET 60096
SL14260 1 OIL SEAL LW-14260
SL18661 12 SEAL - SHROUD TUBE LW-18661
SL66224 1 GASKET 66224
SL70310 12 O-RING 70310
SL70455 1 GASKET 70455
SL70457 1 GASKET 70457
SL71481 6 RING, OIL SEAL, 4.84 ID X .04 71481
SL14820 8 SNAP RING
SL71973 6 GASKET 71973
SL72053 1 GASKET 72053
SL72091 2 PACKING, RESISTANT, OIL 72091
SL72312 1 O-RING 72312
SL73383 1 LOCK PLATE 73383
SL73818 1 GASKET 73818
SL75906 6 GASKET 75906
SL15628 1 SEAL,CRANKSHAFT ass'y LW-15628
SL10332 1 LOCK PLATE LW-10332
SL13792 1 SEAL, OIL CRANKSHAFT ASSY. LW-13792
SL12681 2 GASKET LW-12681
SL12272 6 LOCK PLATE LW-12272
SL72812 1 GASKET 06B21326
SL14995 6 SPRING LW-14995
SL-STD-208 2 SEAL, OIL 06A19956
SL74065 1 PACKING RESISTANT, OIL 74065
77154 1
MS35769-11 1 GASKET
SL77611 6 GASKET 77611
SL-STD-1733 1 O-RING STD-1733
AS3582-009 1 O-RING MS9068-009
SL74068 1 O-RING 74068
MS16625-2100 1 LOCK RING INTERNAL
