Floating Clipnut

From $2.99 to $3.65
Part No. Thread Size Panel Thickness Edge Margin Clip Width Description Price Buy
4972-5-62
6-32.030-.0620.2810.406Floating Clip Nut 3D0039-3$3.65
Quantity

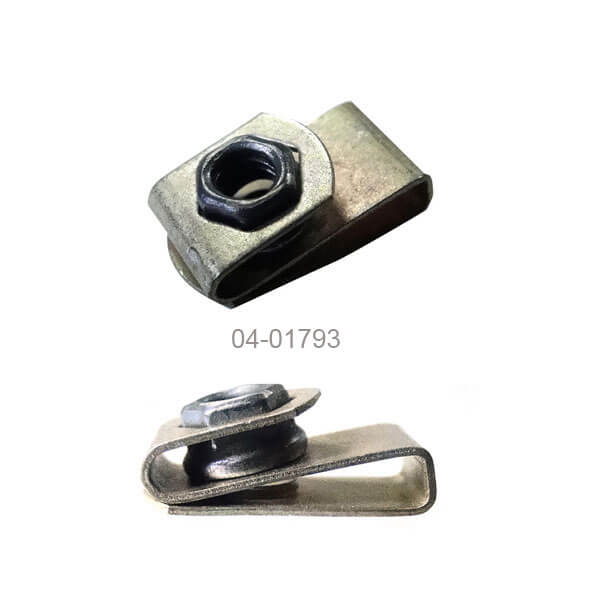

04-01793
8-32.020-.1250.3750.437Floating Clip Nut 4972-6-82$2.99
Quantity

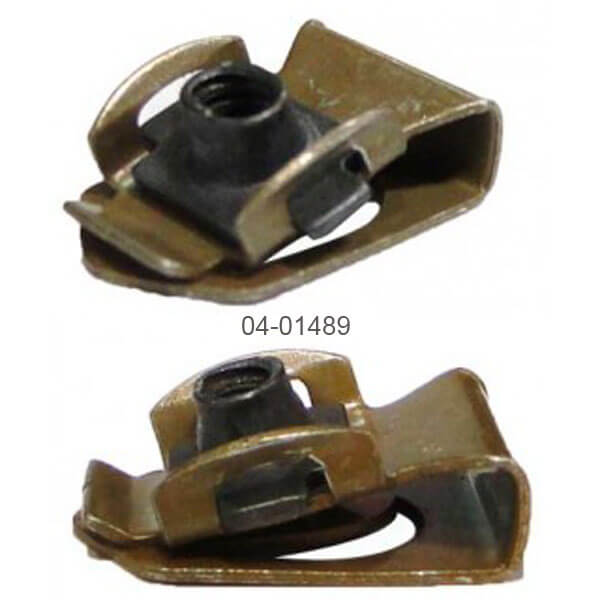

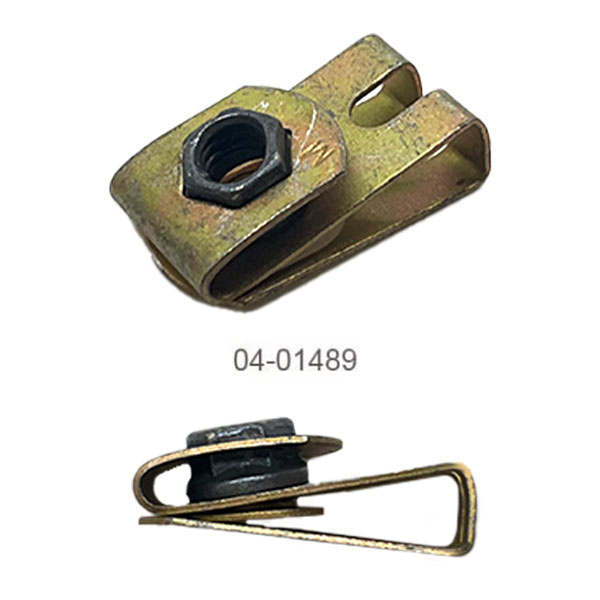

04-01489
10-32.020-.090.38-.500.437Floating Clip Nut 4972-1032$3.45
Quantity
Subtotal $0.00
Add to Wishlist

Overview

LESS 20%, ALL NUTS THIS PAGE, IN LOTS OF 100 PER SIZE.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Arrived promptly, well packed, in perfect condition.

Millard F Verified Purchase

Floating Clip Nut 4972-6-82

May 20, 2024

replaced old ones perfectly

Gary B Verified Purchase

Floating Clip Nut 3D0039-3

April 3, 2024

nice clip pretty pricey

Dan C Verified Purchase

Floating Clip Nut 3D0039-3

March 13, 2024

Peter A Verified Purchase

Floating Clip Nut 4972-6-82

September 13, 2023

Matthew S Verified Purchase

Floating Clip Nut 4972-6-82

August 26, 2023

Great product

Sandy P Verified Purchase

Floating Clip Nut 3D0039-3

June 8, 2023

The screws go in tight. At first I thought I got the wrong thread but they will go in, that’s the design of it

Bright S Verified Purchase

Floating Clip Nut 4972-6-82

March 1, 2023

Strahm F Verified Purchase

Floating Clip Nut 4972-6-82

December 3, 2022

Strahm F Verified Purchase

Floating Clip Nut 4972-1032

December 3, 2022

Strahm F Verified Purchase

Floating Clip Nut 3D0039-3

December 3, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the dimensions for length and width?

The dims for part number LHA4972-1032 are as follows: width: .447" total length: .670" edge to cnter hole length: .385"

Q: On the 10-32 plate, what is the max thickness of material is it designed for?

.020" - .090" material thickness range.

Q: What is the edge to hole center distance for part number 4972-5-62?

The edge to hole center distance is 0.281".

Q: Are these made of stainless steel?

No, they are cad plated steel.

Q: Are these locking nuts? If so which 832 clip nuts do you have that are non locking.

These threaded nutplates can be used for structural / non-structural applications. Tinnermans are for sheet metal screws.
